S54.T1S/K-C High Resolution θx, θy Tip/Tilt Stage

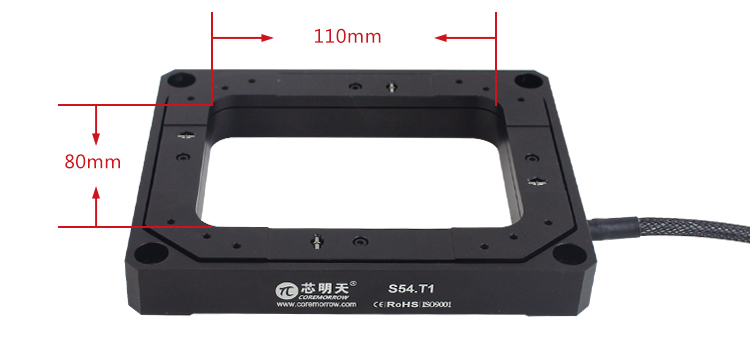

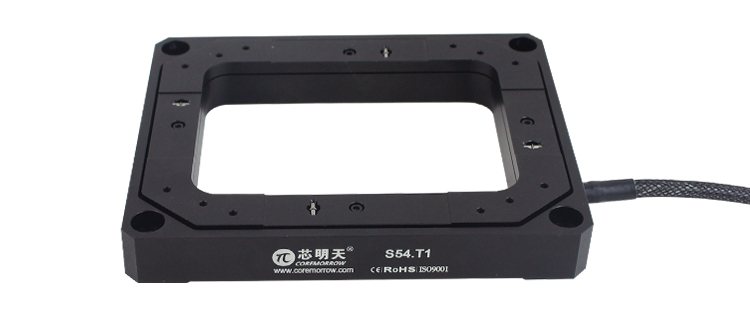

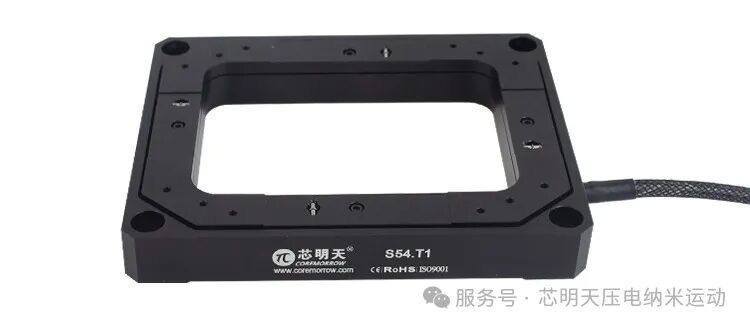

S54.T1S/K-C is a high-precision piezo tip/tilt stage, which can produce θx and θy motion. The whole system adopts frictionless flexible hinge structure design, which has the characteristics of fast response speed and high positioning accuracy. With a closed-loop sensor, the piezo tip/tilt stage can achieve repeatability of 0.011%F.S. which can be used to a wide range of high-precision applications. It has a large central through-hole, the size of the light transmittance aperture is 110×80mm^2, which is suitable for transmitted light applications. The product is shown as the figure below.
Characteristics
01

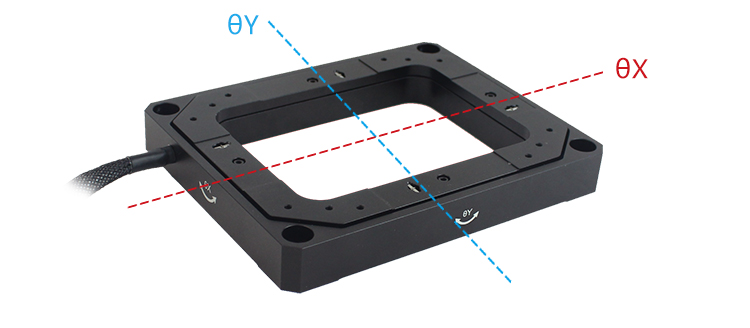

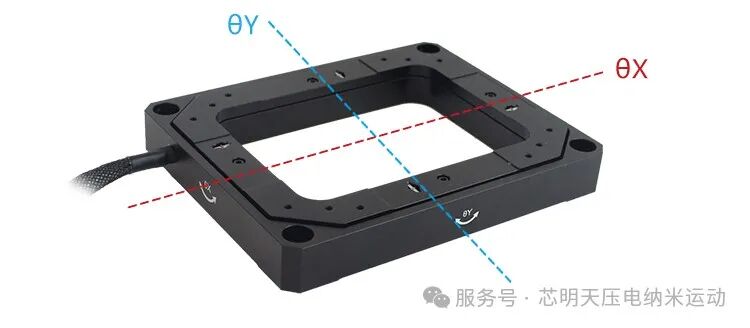

θx、θy Tilt
02

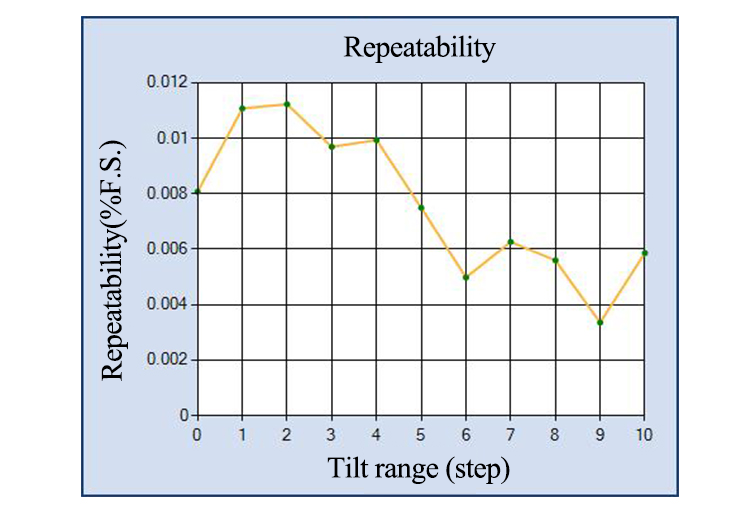

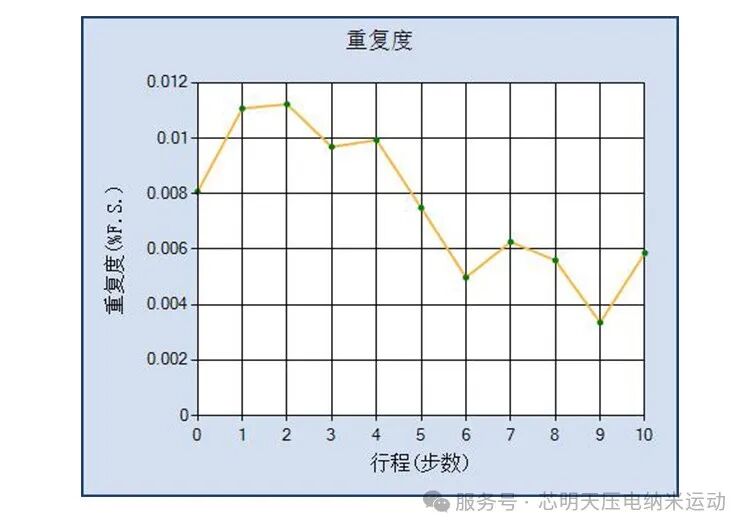

High Closed Loop Repeatability
03

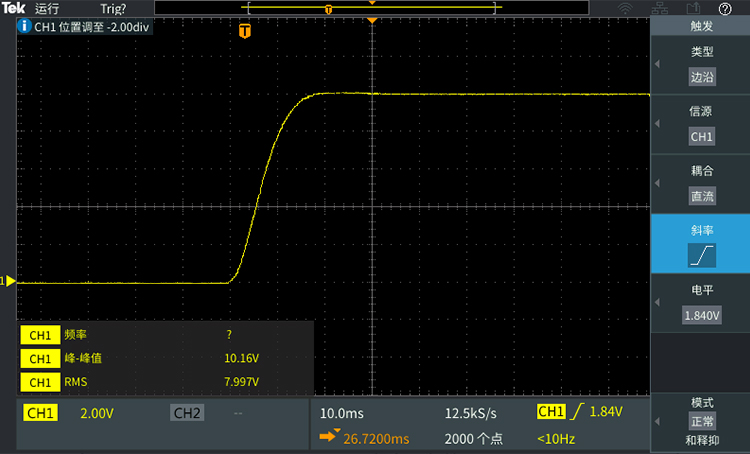

Closed Loop Fast Step
The step time of 0.4mrad tilt (with 300g load) can be short to 25ms
04
Central Through Hole

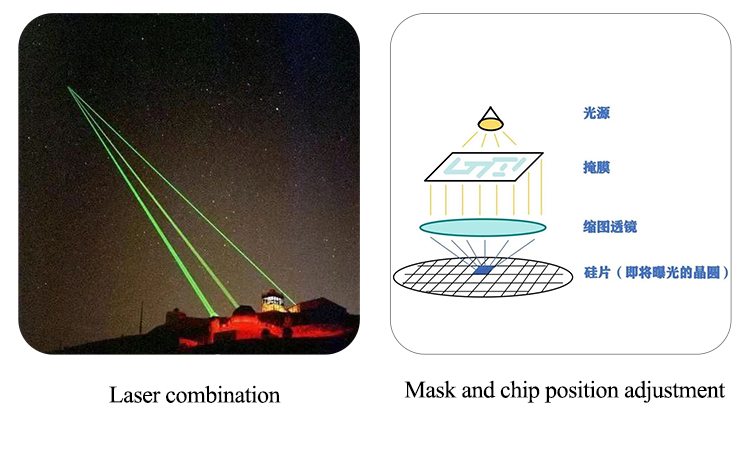

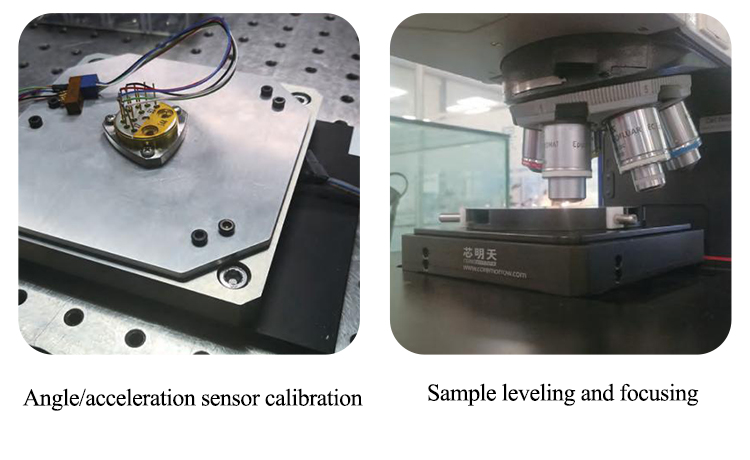

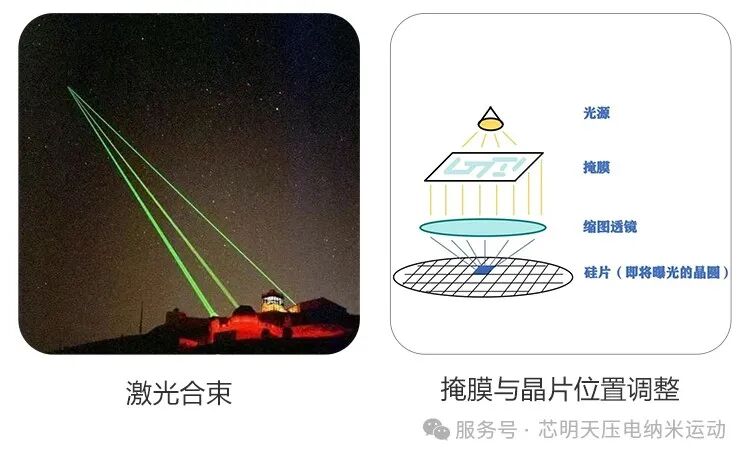

Application
Note: The picture comes from the Internet
Technical Data
|
Model |
|
|
|
Active axis |
|
|
|
Drive control |
3 driving channels, 2 sensing channels |
|
|
Nominal tilt angle (0~120V) |
|
|
|
Max. tilt angle (0~150V) |
|
|
|
Sensor |
|
|
|
Aperture |
|
|
|
θx, θy closed/open loop resolution |
|
|
|
Closed-loop linearity |
|
|
|
Closed-loop repeatability |
|
|
|
Unloaded resonant frequency |
|
|
|
Resonant frequency@300g |
|
|
|
Step time |
|
|
|
Load capacity |
Herizontal |
|
|
El.capacitance |
3.6μF/axis |
|
|
Material |
Steel, Al |
|
|
Mass |
560g (Cable included) |
|

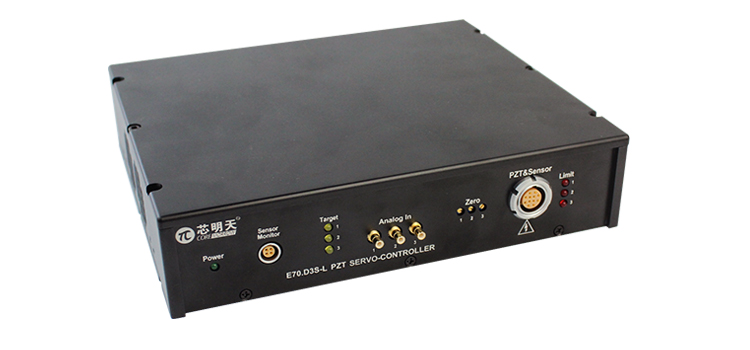

Recommended Controller
E70 is a small 3-channel piezo controller with compact size, high power, low power consumption, high bandwidth and low ripple noise. It uses DC24V power supply, 0~120/150V optional output voltage and 10kHz bandwidth. Its optimized sensing servo module improves the precision and stability of PI adjustment and control, and can digitally communicate through RS-232/RS-422, USB or network port. Meanwhile, the upper computer software supports secondary development, which is convenient and fast.
For more details, please contact us by calling 0451-86268790, 17051647888(Wechat ID).
