P15.XY100S/K-C Piezo Nanopostioning Scanners is a an XY axis motion piezo nanopositioning stage. The stroke of each axis can reach 100 microns, and the center has a large aperture, which is very suitable for transmitted light applications.

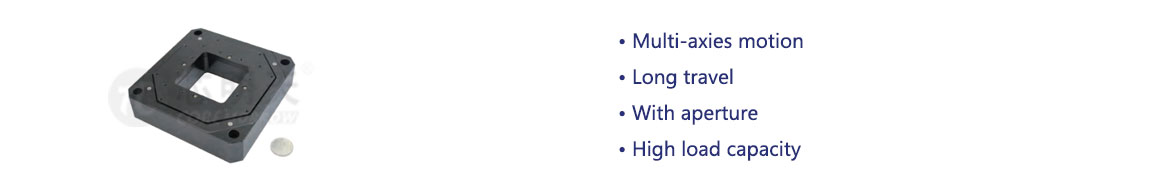

Characteristics
|
|
|
|
|
Application
|
|
|
|
|
| Technical Data | ||||
|
Type |
P15.XY100S-C |
P15.XY100K-C |
Units |
|
|
Active axes |
X、Y |
X、Y |
|
|
|
Driving channels |
2 driving channels |
2 driving channels |
|
|
|
Travel（0~120V） |
80 |
80 |
μm±10% |
|
|
Max.travel（0~150V） |
100 |
100 |
μm±10% |
|
|
Sensor |
SGS |
- |
|
|
|
Aperture |
66×66 |
66×66 |
mm |
|
|
Size |
150×150×30 |
150×150×30 |
mm |
|
|
Resolution |
3.5 |
1 |
nm |
|
|
Linearity |
0.15 |
- |
%F.S. |
|
|
Closed loop repeatability |
0.1 |
- |
%F.S. |
|
|
Pitch/yaw/roll |
- |
- |
μrad |
|
|
Stiffness |
- |
- |
N/μm±20% |
|
|
Push/pull force |
- |
- |
N |
|
|
Unloaded resonant frequency |
200 |
200 |
Hz±20% |
|
|
Resonant frequency |
45（@60kg） |
45（@6kg） |
Hz±20% |
|
|
Load capacity |
Horizontal |
6 |
6 |
kg |
|
Vertical |
0.5 | 0.5 | ||
|
Inverted |
6 | 6 | ||
|
El. capacitance |
10.8/axis |
10.8/axis |
μF±20% |
|
|
Material |
Aluminum |
Aluminum |
|
|
|
Mass(no cable) |
<1.1 |
<1.1 |
|
|
| Mounting Method |
Horizontal Mounting |
Vertical Mounting |
Inverted Mounting |
| Definition |
Place the PZT platform horizontally for installation, with the moving surface located above the PZT platform and parallel to the horizontal plane.
PS: Default direction for carrying capacity in the parameter table
|
Place and install the PZT platform vertically, with the moving surface parallel to the direction of gravity
|
Place the PZT platform horizontally, but the moving surface is located below the PZT platform |
| Diagram |
 |
 |
 |
| Note |
When the mounting method is selected as vertical mounting, pay attention to the outlet port |
||
