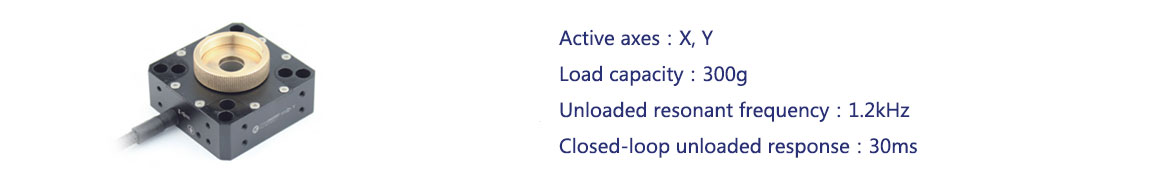

P70 piezo nanopositioning scanner has two versions, XY-motion and Z-motion version. Both versions have four through holes at the four corners, and the hole center distance is 30mm, which is very suitable for the installation of cage structures.


Moving direction

Applied to Cage Structures

Applied to Cage Structures

    Technical data

Models

P70.XY20S
(amplified)

P70.XY20K
(amplified)

Units

Active axis

Z

Z



Drive control

3 driving channels
2 sensing channels

3 driving channels
2 sensing channels



Travel range(0~100V)

±7/axis

±7/axis

μm±10%

Max.travel range(0~120V)

±8.5/axis

±8.5/axis

μm±10%

Sensor type

SGS

-



Resolution

0.6

0.2

nm

Linearity

0.3

-

%F.S.

Repeatability

0.2

-

%F.S.

Pitch/yaw/roll

<10

<10

μrad

Load capacity

Horizontal
0.3

0.3

kg

Vertical
0.1 0.1
Inverted
0.3 0.3

Response time

30

30

ms±20%

Unloaded resonance

1.2

1.2

kHz±20%

Load resonance

0.4(53g)

0.4(53g)

kHz±20%

El.capacitance

0.8/axis

0.8/axis

μF±20%

Mass

175

175

g±5%

Note: Max driving voltage could be -20V~150V, Recommended voltage 0~120V for long-term operation to extend lifetime.

Technical data are measured by CoreMorrow E00/E01 series piezo controller.


Mounting Method Horizontal Mounting
Vertical Mounting
Inverted Mounting
Definition

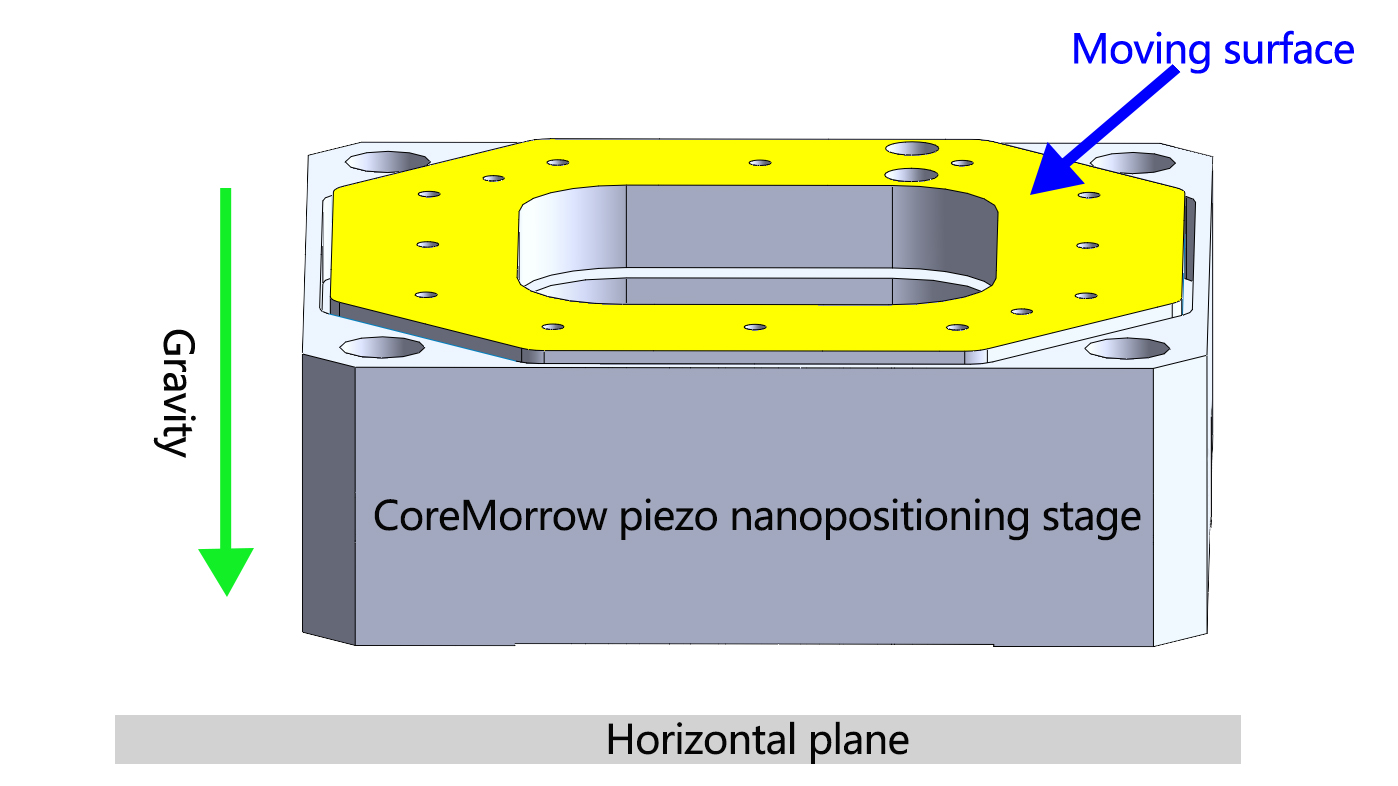

   Place the PZT platform horizontally for installation, with the moving surface located above the PZT platform and parallel to the horizontal plane.
PS: Default direction for carrying capacity in the parameter table

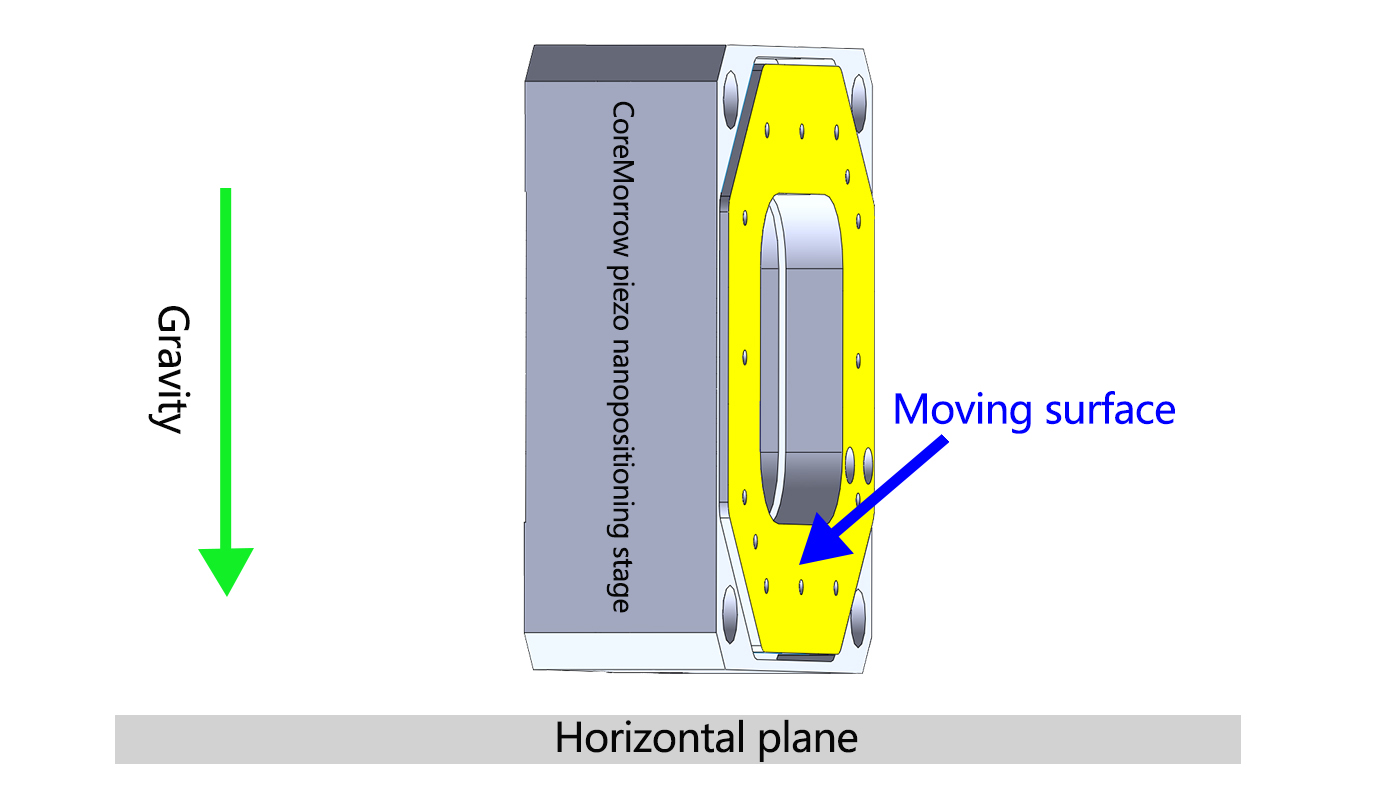

  Place and install the PZT platform vertically, with the moving surface parallel to the direction of gravity
PS:There are multiple vertical installation methods, and the technical data corresponds to the minimum load capacity

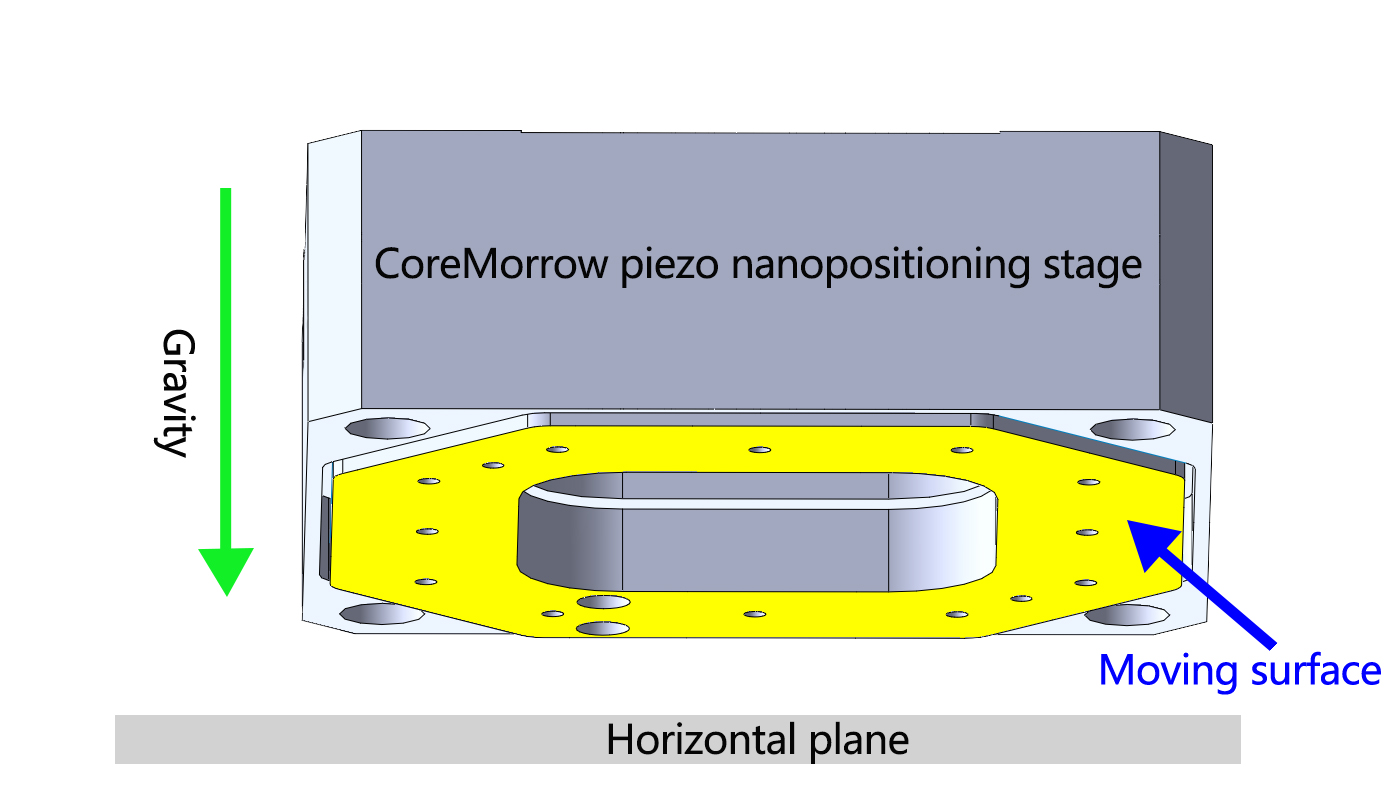

  Place the PZT platform horizontally, but the moving surface is located below the PZT platform

Diagram


Note

When the mounting method is selected as vertical mounting, pay attention to the outlet port

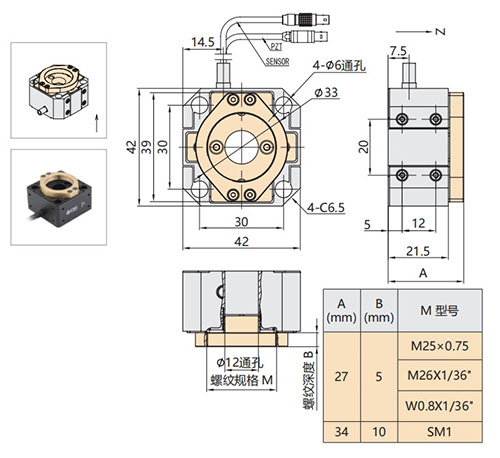

    Drawings(Click on the picture to enlarge it)

    Downloads
Auto CAD PDF
Step
Specs Sheet
Manual
