P13A piezo stage(vacuum compatible piezo stage) is specially designed for extremely low temperature and strong magnetic field. It adopts low-temperature piezo drive with light shell and is in XY scanning motion. Its volume is small and the size is only 33×33×14.6mm, with a 10×10mm through hole in the center.

All components adopt low temperature and strong magnetic compatible version to ensure its performance under low temperature and strong magnetic environment.


Characteristics


 Low temperature 4K

 Strong magnetic resistance

 Disoplacement up to 30μm@150V at 4K

 Open-loop drive, quick response

 Resolution to 0.5nm

 Vacuum version available



    Technical Data

Type

P13A.XY90K

P13A.XYZ80K

P13A.XY180K

Units

Operating temperature

Room

4K

Room

4K

Room

4K

Active axes

X、Y

X、Y

X、Y、Z

X、Y、Z

X、Y

X、Y

Drive control

2 driving channels

3 driving channels

2 driving channels

Driving source

Piezo Stack

Piezo Stack

Piezo Stack

Travel range

90 (0~60V)

30(0~150V)

80(0~60V)

25(0~150V)

180(0~60V)

80(0~150V)

μm±20%

Open-loop resolution

1

0.3

1

0.3

2

1

nm

Unloaded resonant
frequency

450

450

350

350

-

-

Hz±20%

Resonant
frequency@150g

160

160

-

-

-

-

Hz±20%

El. capacitance

5.5/axis

0.75/axis

XY5.5、Z11

XY0.75、Z1.5

12.1/axis

1.65/axis

μF±20%

Mainbody

Stainless steel

Ti

Stainless steel

Ti

Stainless steel

Ti

Wires

Standard wire

Phosphor Bronze Twisted Paired Wire

Standard wire

Phosphor Bronze Twisted Paired Wire

Standard wire

Phosphor Bronze Twisted Paired Wire

Operating environment

-20~80

Temperature to 4K, Max.magnetic field to 30T, Vacuum degree to 2E-11mbar

-20~80

Temperature to 4K, Max.magnetic field to 30T, Vacuum degree to 2E-11mbar

-20~80

Temperature to 4K, Max.magnetic field to 30T, Vacuum degree to 2E-11mbar

Load capacity

Horizontal

0.15

0.15

0.2

0.2

0.2

0.2

kg

Vertical
0.1 0.1 0.05 0.05 0.05 0.05
Inverted
0.15 0.15 0.05 0.05 0.05 0.05

Mass

88

88

168

168

-

-

g±5%


Mounting Method Horizontal Mounting
Vertical Mounting
Inverted Mounting
Definition
   Place the PZT platform horizontally for installation, with the moving surface located above the PZT platform and parallel to the horizontal plane.
PS: Default direction for carrying capacity in the parameter table

  Place and install the PZT platform vertically, with the moving surface parallel to the direction of gravity
PS:There are multiple vertical installation methods, and the technical data corresponds to the minimum load capacity

  Place the PZT platform horizontally, but the moving surface is located below the PZT platform

Diagram


Note

When the mounting method is selected as vertical mounting, pay attention to the outlet port

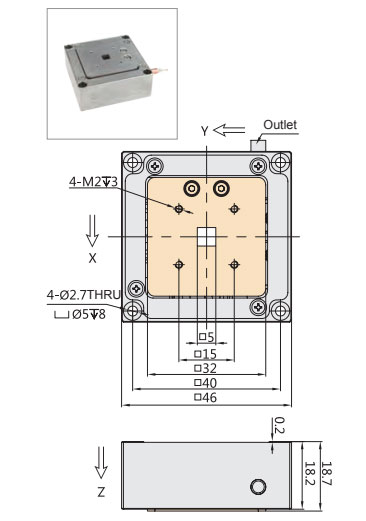

    P13A.XY90K Drawings(Click on the picture to enlarge it)
    P13A.XYZ80K Drawings(Click on the picture to enlarge it)


    P13A.XY180K Drawings(Click on the picture to enlarge it)


   Downloads
Auto CAD PDF

P13A.XY90

P13A.XY180K

P13A.XYZ80

Step
Specs Sheet



Manual
