P65A.XY100S/K50 series high-resolution piezo nanopositioning stage is a nanopositioning platform that uses piezos as the driving source and a flexible hinge mechanism to achieve precision motion in the X and Y axes. Amplification mechanism drive and built in high-performance piezo actuator make it achieve displacement of 110μm/axis. Open/closed-loop versions are available for selection, vacuum versions is customizable. The closed-loop positioning accuracy of 0.004% F.S. in X,Y makes it very suitable for high-precision positioning applications.
Characteristics
|
|
|
|
|
|

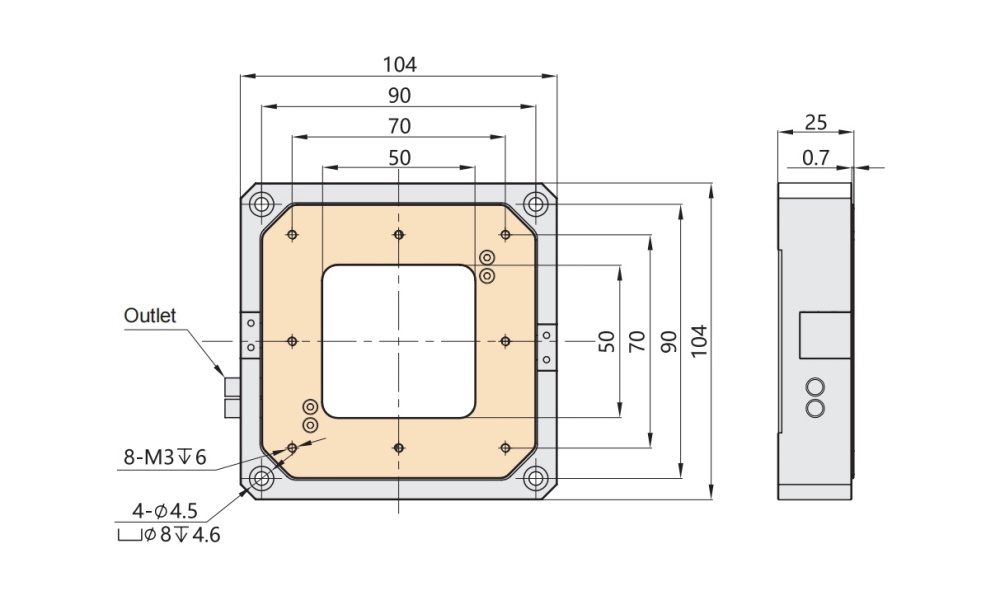

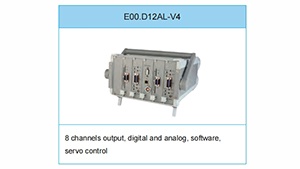

Recommended Controllers
|
| Technical Data | ||||
|
Type |
S-closed loop
|
P65A.XY100S50 |
P65A.XY100K50 |
Units |
|
Active axes |
X、Y |
X、Y |
|
|
|
Drive control |
4 driving channels |
4 driving channels |
|
|
|
Nominal travel range(0~120V) |
90/axis |
90/axis |
μm±10% |
|
|
Max. travel range(0~150V) |
110/axis |
110/axis |
μm±10% |
|
|
Sensor type |
SGS |
- |
|
|
| Aperture |
50×50 |
50×50 |
mm | |
|
Resolution |
2.5 |
1.5 |
nm |
|
|
Linearity |
X0.02/Y0.04 |
- |
%F.S. |
|
|
Repeatability |
0.004 |
- |
%F.S. |
|
|
Push/pull force |
100/10 |
100/10 |
N |
|
|
Stiffness |
0.8 |
0.8 |
N/μm±20% |
|
|
Unloaded resonant frequency |
X520/Y390 |
X520/Y390 |
Hz±20% |
|
|
Resonant frequency@1kg |
X300/Y280 |
X300/Y280 |
Hz±20% |
|
|
Step time |
40@1kg |
4 |
ms±20% |
|
|
Load capacity |
Horizontal |
1 |
1 |
kg |
| Vertical | 1 | 1 | ||
| Inverted | 1 | 1 | ||
|
El. capacitance |
6.8/axis |
6.8/axis |
μF±20% |
|
|
Material |
Steel, Al |
Steel, Al |
|
|
|
Mass(Cable included) |
600 |
600 |
g±5% |
|
| Mounting Method |
Horizontal Mounting |
Vertical Mounting |
Inverted Mounting |
| Definition |
Place the PZT platform horizontally for installation, with the moving surface located above the PZT platform and parallel to the horizontal plane.
PS: Default direction for carrying capacity in the parameter table
|
Place and install the PZT platform vertically, with the moving surface parallel to the direction of gravity
|
Place the PZT platform horizontally, but the moving surface is located below the PZT platform |
| Diagram |
 |
 |
 |
| Note |
When the mounting method is selected as vertical mounting, pay attention to the outlet port |
||
