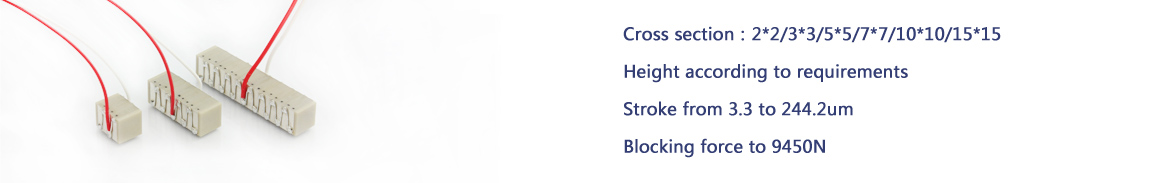

Piezo Stack ActuatorsCurrent Location:Product Homepage >> PZT Plate Stack Actuators>>Piezo Stack Actuators
  • Technical Data
  • Feedback
    Technical Data

Models

L[mm]

W[mm]

H[mm]

Voltage[V]

Stroke[μm]

Blocking Force[N]

El.capacitance[nF]

Stiffness[N/μm]

Resonant Frequency[kHz]

NAC2001-Hxx

2

2

4-20

60

2.55-22.9

168

130-1150

66-7

>248-52

NAC2002-Hxx

3

3

4-30

60

2.85-39.9

378

360-5040

133-9

>248-35

NAC2003-Hxx

5

5

4-50

60

3-72

1050

1020-24625

350-15

>248-22

NAC2011-Hxx

2

2

4-20

150

2.81-25.25

168

21-190

60-7

>248-52

NAC2012-Hxx

3

3

4-30

150

3.14-43.89

378

59-820

121-9

>248-35

NAC2013-Hxx

5

5

4-50

150

3.3-79.2

1050

180-4330

318-13

>248-22

NAC2014-Hxx

7

7

4-70

150

3.3-112.2

2060

340-11650

624-18

>248-16

NAC2015-Hxx

10

10

4-100

150

3.3-161.7

4200

680-33500

1273-26

>248-11

NAC2021-Hxx

7

7

4-70

200

3.3-112.2

2060

200-6750

624-18

>248-16

NAC2022-Hxx

10

10

4-100

200

3.3-161.7

4200

400-19400

1273-26

>248-11

NAC2023-Hxx

15

15

4-150

200

3.3-244.2

9450

870-64600

2864-39

>248-7
