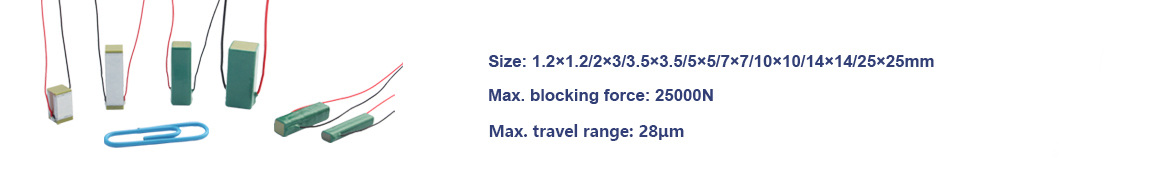

Low voltage piezo stacks have excellent performance, suitable for scientific experiments and industrial applications. Special insulation material ensures maximum output of dynamic performance under severe conditions.

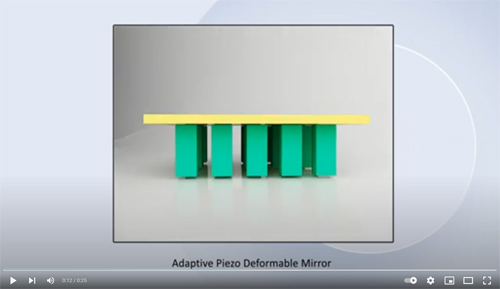

Applications
|
|
|
|
|
|
|
|
|
|
| Technical Data | |||||||||
|
Models |
Coating color
|

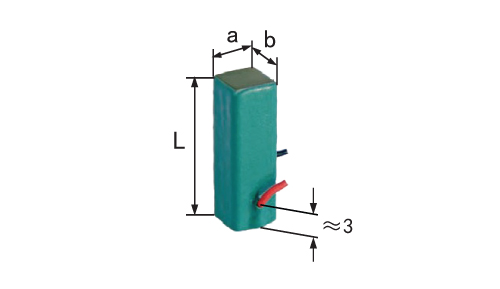

Dimensions[1] a×b×L[mm]
|
Max./Stroke[2] [μm]±15%
|
El.capacitance [μF]±20%
|
Stiffness [N/μm]±10%
|
Resonant frequency [kHz]
|
Blocking Force [N]
|
Mass [g]±5%*
|
Download |
|
PSt50/1.2×1.2/1.7H |
Gray |
1.22×1.3×1.7 |
1/0.8 |
0.045 |
50 |
100 |
80 |
0.09 |
|
|
PSt100/1.65×1.65/5H |
Gray |
1.66×1.72×5 |
4/3.2 |
0.090 |
30 |
50 |
120 |
0.48 |
|
|
PSt150/2×3/5H |
Gray |
2.1×3.1×5 |
6.5/5 |
0.1 |
45 |
150 |
300 |
0.4 |
|
| PSt150/2×3/5L |
Green |
3×4×5 |
|||||||
|
PSt150/2×3/7H |
Gray |
2.1×3.1×9 |
13/9 |
0.17 |
25 |
100 |
300 |
0.6 |
|
| PSt150/2×3/7L |
Green |
3×4×9 |
|||||||
|
PSt150/2×3/10H |
Gray |
2.1×3.1×10 |
13/9 |
0.18 |
22 |
100 |
300 |
0.7 |
|
| PSt150/2×3/10L |
Green |
3×4×10 |
|||||||
|
PSt150/2×3/20H |
Gray |
2.1×3.1×18 |
28/20 |
0.42 |
12 |
50 |
300 |
1.2 |
|
| PSt150/2×3/20L |
Green |
3×4×18 |
|||||||
|
PSt150/3.5×3.5/7H |
Gray |
3.6×3.6×9 |
13/9 |
0.35 |
50 |
100 |
800 |
1.05 |
|
| PSt150/3.5×3.5/7L |
Green |
4.5×4.5×9 |
|||||||
|
PSt150/3.5×3.5/20H |
Gray |
3.6×3.6×18 |
28/20 |
0.8 |
25 |
50 |
800 |
2.1 |
|
| PSt150/3.5×3.5/20L |
Green |
4.5×4.5×18 |
|||||||
|
PSt150/5×5/7H |
Gray |
5.1×5.1×9 |
13/9 |
0.8 |
120 |
100 |
1600 |
2 |
|
| PSt150/5×5/7L |
Green |
6×6×9 |
|||||||
|
PSt150/5×5/20H |
Gray |
5.1×5.1×18 |
28/20 |
1.8 |
60 |
50 |
1600 |
3.8 |
|
|
PSt150/5×5/20L |
Green |
6×6×18 |
28/20 |
1.8 |
60 |
50 |
1600 |
4.1 |
|
|
PSt150/5×5/20L |
Green |
6×6×20 |
28/20 |
1.5 |
60 |
50 |
1600 |
4.1 |
|
|
PSt150/7×7/7H |
Gray |
7.1×7.1×9 |
13/9 |
1.4 |
240 |
100 |
3500 |
3.8 |
|
| PSt150/7×7/7L |
Green |
8×8×9 |
|||||||
|
PSt150/7×7/20H |
Gray |
7.1×7.1×18 |
28/20 |
3.4 |
120 |
50 |
3500 |
8 |
|
| PSt150/7×7/20L |
Green |
8×8×18 |
|||||||
|
PSt150/10×10/7H |
Gray |
10.1×10.1×9 |
13/9 |
3.0 |
500 |
100 |
7000 |
8.1 |
|
| PSt150/10×10/7L |
Green |
11×11×9 |
|||||||
|
PSt150/10×10/20H |
Gray |
10.1×10.1×18 |
28/20 |
6.5 |
250 |
50 |
7000 |
14.8 |
|
| PSt150/10×10/20L |
Green |
11×11×18 |
|||||||
|
PSt150/14×14/20H |
Gray |
14.1×14.1×18 |
28/20 |
14.5 |
500 |
47 |
15000 |
31.3 |
|
| PSt150/14×14/20L |
Green |
15×15×18 |
|||||||
|
PSt150/25×25/15H |
Gray |
25.1×25.1×20 |
19/15 |
30.5 |
1282 |
50 |
20000 |
109.55 |
|
| PSt150/25×25/15L |
Green |
26×26×20 |
|||||||
Notes: In standard lead, the red line is positive. About PSt50/PSt100 series, the red line is negative.
[1] The dimensions of piezo stack is not include thickness of resin. The single side thickness of Gray resin is 50μm and the green resin is 0.5mm, outlet size single side +1mm, tolerance +/-0.2mm, the heightness tolerance +/-0.05mm.
[2] PSt150: stroke is under 0~150V, Max. stroke is under -30~150V. Recommended voltage 0-120V for long-time high reliability. PSt50: Max. stroke is under 0~50V. PSt100: Max. stroke is under 0~100V.

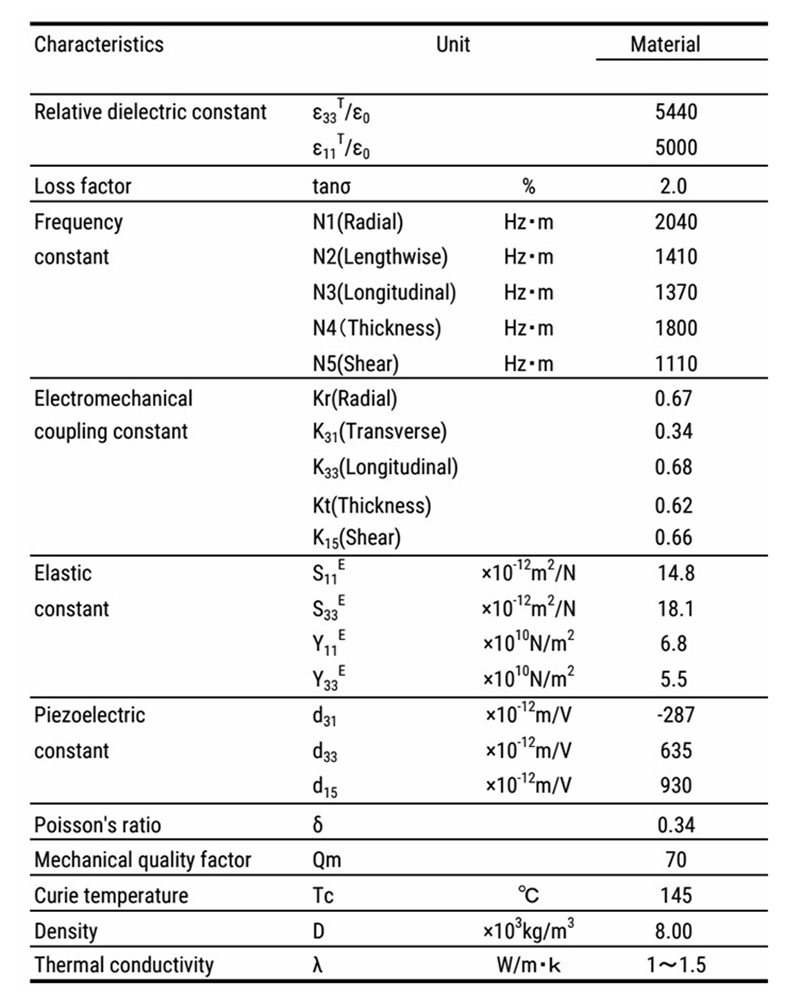

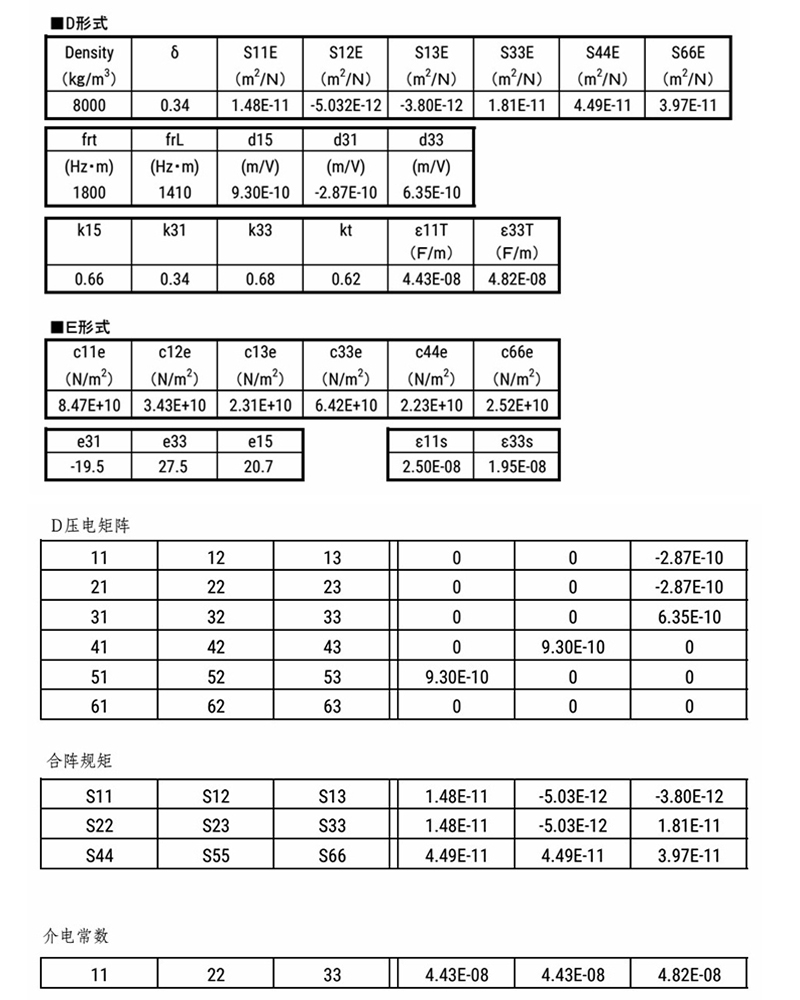

Material Constant of Piezoelectric Ceramics
