Piezo Stack/ActuatorCurrent Location：Product Homepage >> PZT Plate Stack Actuators>>Piezo Stack/Actuator
  • Introduction
  • Feedback

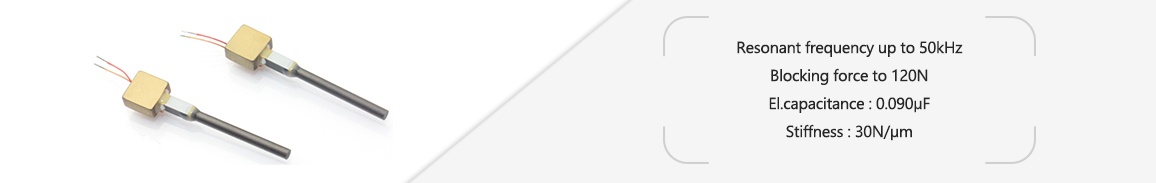

Characteristics


 Resonant frequency up to 50kHz

 Blocking force to 120N

 El.capacitance : 0.090μF

 Stiffness : 30N/μm

    Technical Data

Model

PSt 100/1.65×1.65/5

Units

Coating

Gray



Size a×b×L

1.66×1.72×5

mm

Max. / stroke[2]

4/3.2
 μm±15%

El.capacitance

0.090

μF±20%

Stiffness

30

N/μm±10%

Resonant frequency

50

kHz±20%

Max. blocking force

120

N

Mass

0.48

g±5%

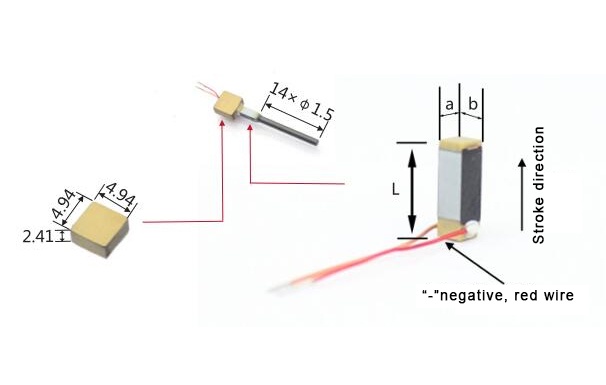

    Drawings（Click on the picture to enlarge it）
Click on the picture to enlarge it
    Downloads
Auto CAD PDF
Step
Specs Sheet
Manual
