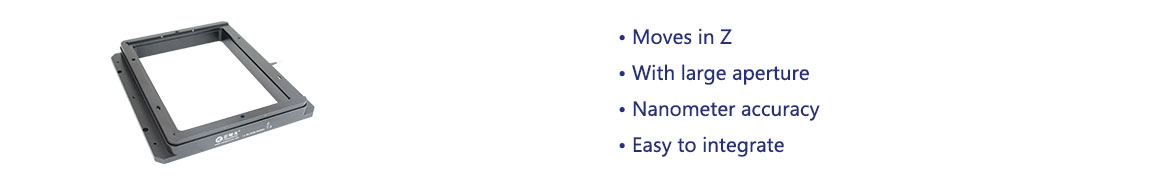

XD781 piezo nanopositioning scanner moves in Z, and features large aperture. Its frame design makes it easy to integrate, and it’s very suitable for microscopic imaging of samples in the Z direction.
Characteristics
|
|
|
|
|
Applications
|
|
|
|
|
|
|
|
|
|
| Technical Data | ||||
|
Type |
XD781.100S |
XD781.100K |
Units |
|
|
Active axes |
Z |
Z |
|
|
|
Drive control |
1 driving channel 1 sensing channel |
1 driving channel |
|
|
|
Nominal travel(0~120V) |
80 |
80 |
μm±10% |
|
|
Max.travel(0~150V) |
100 |
100 |
μm±10% |
|
|
Sensor type |
SGS |
- |
|
|
|
Resolution |
3 |
1 |
nm |
|
|
Linearity |
0.2 |
- |
%F.S. |
|
|
Repeatability |
0.1 |
- |
%F.S. |
|
|
Unloaded resonant frequency |
300 |
300 |
Hz±20% |
|
|
Resonant frequency @100g load |
200 |
200 |
Hz±20% |
|
|
Load capacity |
Horizontal |
1 |
1 |
kg |
|
Vertical |
0.03 | 0.03 | ||
|
Inverted |
0.2 | 0.2 | ||
|
El.capacitance |
5.4 |
5.4 |
μF±20% |
|
|
Material |
Steel,AI |
Steel,AI |
|
|
|
Mass |
875 |
875 |
g±5% |
|
Note: Above parameters are measured with the E00/E01 series piezo controller. The maximum driving voltage can be -20V~150V; For high-reliability and long-term use, the recommended driving voltage is 0~120V.
| Mounting Method |
Horizontal Mounting |
Vertical Mounting |
Inverted Mounting |
| Definition |
Place the PZT platform horizontally for installation, with the moving surface located above the PZT platform and parallel to the horizontal plane.
PS: Default direction for carrying capacity in the parameter table
|
Place and install the PZT platform vertically, with the moving surface parallel to the direction of gravity
|
Place the PZT platform horizontally, but the moving surface is located below the PZT platform |
| Diagram |
 |
 |
 |
| Note |
When the mounting method is selected as vertical mounting, pay attention to the outlet port |
||
