P77.50S85 P77.50K85 Piezo Phase ShifterCurrent Location:Product Homepage >> X/Z Piezo Nanopositioner>>P77.50S85 P77.50K85 Piezo Phase Shifter
piezo shifter, phase shifter, piezo stage, piezo actuator
  • Introduction
  • Feedback

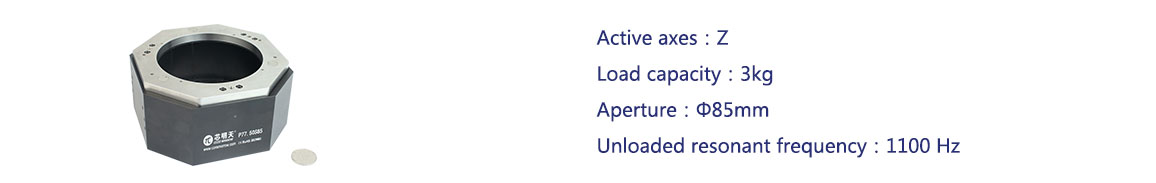

Characteristics


 Travel to 50μm

  Load capacity up to 3Kg

 Aperture:Ø85mm

    Technical data

Type

P77.50S85
P77.50K85

Units

Active axes

Z



Travel range(0~120V)

40

μm±10%

Max.travel range(0~150V)

50

μm±10%

Sensor

SGS/-



Aperture

Φ85

mm

Resolution

1.5/0.4

nm

Unloaded resonant

frequency

1100

Hz±20%

Unloaded step time

15@10μm

ms±20%

Load

capacity

Horizontal

3

kg

Vertical

0.8

Inverted

2

El. capacitance

30.6

μF±20%

Material

Aluminum, steel



Mass

2300(not include cable)

g±5%

Operating temperature

-20~80

Connector

LEMO



Cable length

1.5

m±10mm

Mass

2100

g±5%


Mounting Method Horizontal Mounting
Vertical Mounting
Inverted Mounting
Definition
   Place the PZT platform horizontally for installation, with the moving surface located above the PZT platform and parallel to the horizontal plane.
PS: Default direction for carrying capacity in the parameter table

  Place and install the PZT platform vertically, with the moving surface parallel to the direction of gravity
PS:There are multiple vertical installation methods, and the technical data corresponds to the minimum load capacity

  Place the PZT platform horizontally, but the moving surface is located below the PZT platform

Diagram


Note

When the mounting method is selected as vertical mounting, pay attention to the outlet port

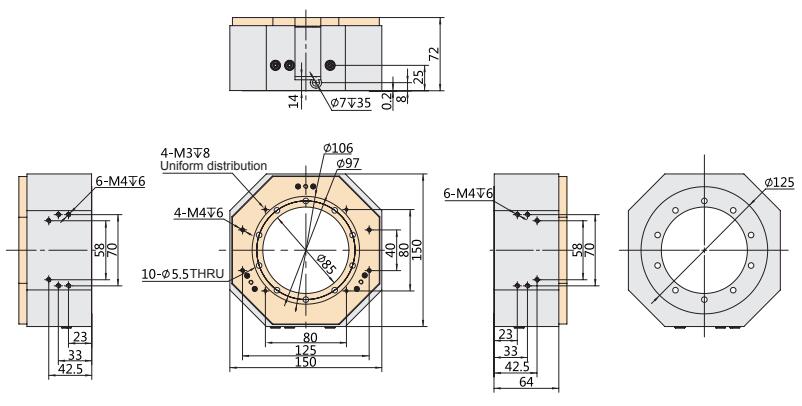

    Drawings(Click on the picture to enlarge it)
Click on the picture to enlarge the drawing of piezo phase shifter
     Downloads
Auto CAD PDF
Step
Specs Sheet
Manual
