Characteristics

Travel to 20μm

Load capacity up to 10Kg

Aperture：Ø155mm

Optional horizontal, vertical, inverted mounting

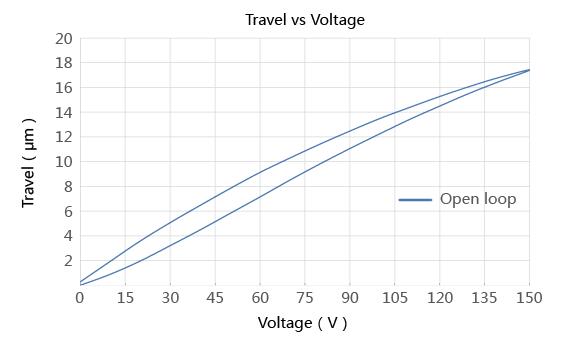

Travel vs Voltage

Technical data
Type		P77.S/K155	Units
Active axes		Z
Travel range(0~120V)		13.5	μm±10%
Max.travel range(0~150V)		17	μm±10%
Sensor		SGS/-
Aperture		Φ155	mm
Resolution		0.5/0.2	nm
Pitch/yaw/roll		<10	μrad
Push/pull force		50/200	N
Unloaded resonant frequency		1300	Hz±20%
Unloaded step time		3.5/2	ms±20%
Load capacity	Horizontal	25	kg
	Vertical	20
	Inverted	20
El. capacitance		13.6	μF±20%
Material		Aluminum, steel
Mass		3020	g±5%
Operating temperature		-20~80	℃
Connector		LEMO
Cable length		1.5	m±10mm

Mounting Method	Horizontal Mounting	Vertical Mounting	Inverted Mounting
Definition	Place the PZT platform horizontally for installation, with the moving surface located above the PZT platform and parallel to the horizontal plane. PS: Default direction for carrying capacity in the parameter table	Place and install the PZT platform vertically, with the moving surface parallel to the direction of gravity PS:There are multiple vertical installation methods, and the technical data corresponds to the minimum load capacity	Place the PZT platform horizontally, but the moving surface is located below the PZT platform
Diagram
Note	When the mounting method is selected as vertical mounting, pay attention to the outlet port

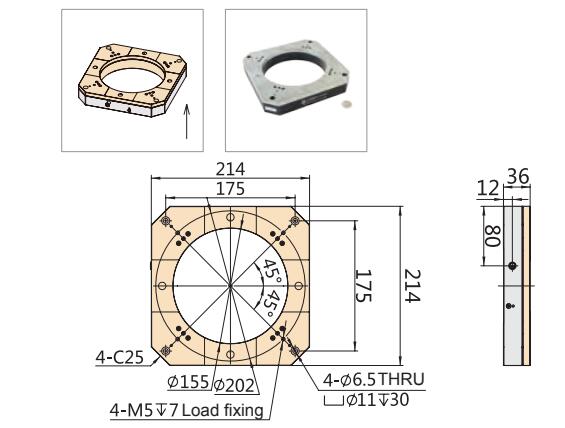

Drawings（Click on the picture to enlarge it）

3D diagram presentation
