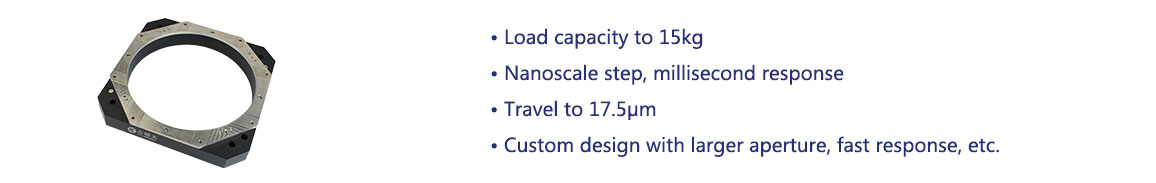

Characteristics

Z axis motion

Travel to 17.5μm

Aperture：Ø242mm

Upright/inverted/side stand mounting

Technical data
Models	P77.S242 P77.K242	Units
Active axes	Z
Travel range(0~120V)	14	μm±10%
Travel range(0~150V)	17.5	μm±10%
Aperture	Φ242	mm
Resolution	0.5/0.2	nm
Pitch/Yaw/Roll	<15	μrad
Unloaded resonant frequency	3090	Hz±20%
Unloaded Step time	20	ms±20%
Load capacity	Upright15/Lateral1/Inverted10	kg
Electrical capacitance	5.4	μF±20%
Material	Aluminum steel
Mass	3800	g±5%
Operating temperature	-20~80	℃
Control	1
Connector	LEMO
Cable length	1.5	m±10mm

Note: Max driving voltage could be -20V~150V, Recommended voltage 0~120V for long-term operation to extend lifetime.

Technical data are measured by CoreMorrow E00/E01 series piezo controller.

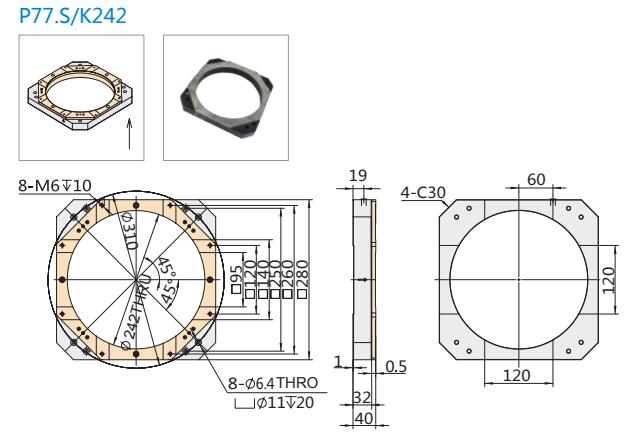

Drawings（Click on the picture to enlarge it）
