P18.Z200 Piezo ScannersCurrent Location:Product Homepage >> X/Z Piezo Nanopositioner>>P18.Z200 Piezo Scanners
  • Introduction
  • Feedback

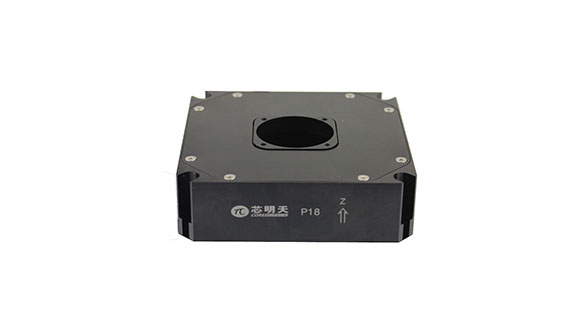

P18 1~3 axes piezo linear scanner adopts amplified mechanism and built-in high-reliability piezo actuators, which could realize highspeed scanning up to 375μm. The aperture is Ø35mm, and various displacements and specifications are available for selection. It is suitable for long-travel multi-dimensional scanning applications.

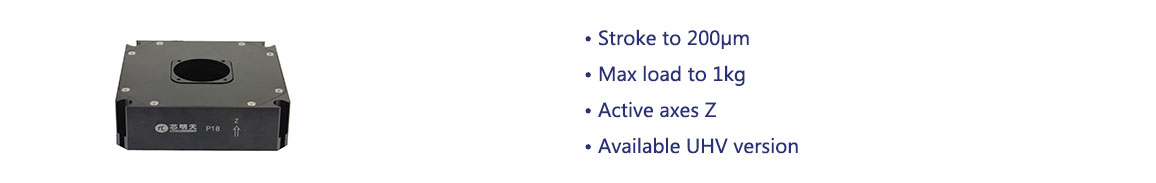

Characteristics


 Active axes Z

  Max load to 1kg

 Available UHV version

 Fast response time

 Aperture: Ø35mm

 Max stroke to 200μm






Appearance

Direct-driving

High Positioning Accuracy

    CoreMorrow P18.XY300 featuring large displacement, high precision and high stability is applied to nanolithography experiments .


Applications


 Surface inspection

 Scanning microscopy

 Interference/metering

 Image processing and stabilization

 Optical metrology

 Semiconductor measurement



    Technical Data

Type

S-Closed loop

P18.Z200S

P18.Z200K

Units

K-Open loop

  Active axes

Z

Z



 Drive control

1 driving channel
1 sensing channel

1 driving channel



  Travel range(0~120V)

160

160

µm±10%

  Max.travel range(0~150V)

200

200

µm±10%

  Sensor

SGS

-



  Aperture

Ø35

Ø35

mm

  Closed/open loop resolution

7

2

nm,typ.

  Closed-loop linearity

0.2

-

%F.S.

  Repeatability

0.15

-

%F.S.

  Pitch/yaw/roll

<20

<20

µrad

  Push/pull force

50/10

50/10

N

  Stiffness

0.3

0.3

N/µm±20%

  Unloaded resonant frequency

0.3

0.3

kHz±20%

  Closed/open-loop unloaded step time

30

5

ms±20%

  Load capacity

Horizontal

1

1

Kg

Vertical
0.5 0.5
Inverted
0.5 0.5

  El. capacitance

21.6

21.6

μF±20%

  Material

Aluminum

Aluminum



  Mass

400

400

g±5%

Note: Max driving voltage could be -20V~150V, recommended voltage 0~120V for long-term and high-reliable operation.

Technical data is measured by CoreMorrow E00/E01 series piezo controller.


Mounting Method Horizontal Mounting
Vertical Mounting
Inverted Mounting
Definition
   Place the PZT platform horizontally for installation, with the moving surface located above the PZT platform and parallel to the horizontal plane.
PS: Default direction for carrying capacity in the parameter table

  Place and install the PZT platform vertically, with the moving surface parallel to the direction of gravity
PS:There are multiple vertical installation methods, and the technical data corresponds to the minimum load capacity

  Place the PZT platform horizontally, but the moving surface is located below the PZT platform

Diagram


Note

When the mounting method is selected as vertical mounting, pay attention to the outlet port

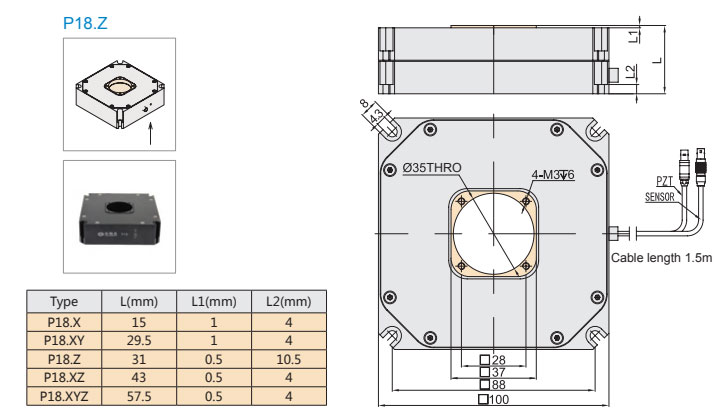

    Drawings(Click on the picture to enlarge it)
点击图片可放大查看
    Downloads
Auto CAD PDF
Step
Specs Sheet
Manual
