XD781.50 Piezo ScannerCurrent Location:Product Homepage >> X/Z Piezo Nanopositioner>>XD781.50 Piezo Scanner
  • Introduction
  • Feedback

    XD781.50 is a one-dimensional piezo scanner, which can achieve a displacement of 60μm in the Z direction and its load capacity is up to 400g. The central through-hole size is φ28mm, which is very easy to integrate and is ideal for applications such as Z-direction sample microscopy imaging.



Characteristics


 Z motion

 Stroke up to 60μm

 Aperture:φ28mm

 Easy to integrate

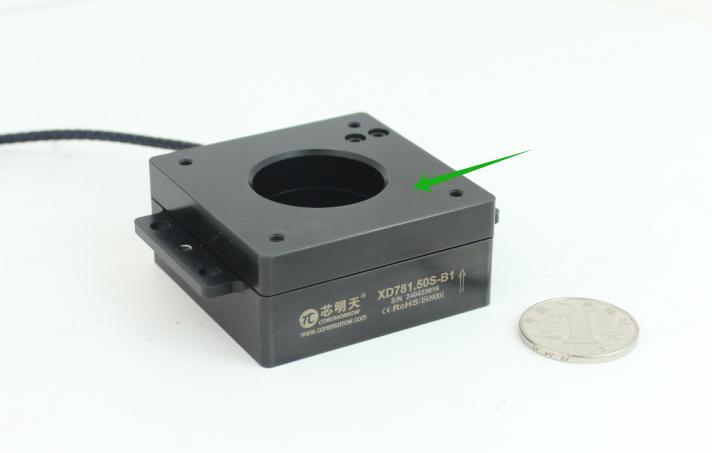

Diagrammatic sketch


Applications


 Microscopic imaging/focusing

 Nanopositioning in Z

 Surface inspection

 Optics

 Micro-nano processing, etc.


    Technical data

Models

S-Closed loop

K-open loop

XD781.50S

XD781.50K

Units

Active axis

Z

Z



Drive control

1 driving channel
1 sensing channel

1 driving channel



Nominal travel range(0~120V)

48

48

µm±10%

Max.travel range(0~150 V)

60

60

µm±10%

Sensor type

SGS

-



Resolution

3

1

nm

Linearity

0.015

-

%F.S.

Repeatability

0.012

-

%F.S.

Step time

40@400g

15

ms±20%

Unloaded resonant frequency

220

220

Hz±20%

Resonant frequency@1000g

100

100

Hz±20%

El.capacitance

1.8

1.8

μF±20%

Operating temperature

-20~80

-20~80

Load capacity

Horizontal
400

400

g

Vertical
150 150
Inverted
150 150

Material

Steel

Steel


Mass(Cable included)

355

355

g±5%



Mounting Method Horizontal Mounting
Vertical Mounting
Inverted Mounting
Definition
   Place the PZT platform horizontally for installation, with the moving surface located above the PZT platform and parallel to the horizontal plane.
PS: Default direction for carrying capacity in the parameter table

  Place and install the PZT platform vertically, with the moving surface parallel to the direction of gravity
PS:There are multiple vertical installation methods, and the technical data corresponds to the minimum load capacity

  Place the PZT platform horizontally, but the moving surface is located below the PZT platform

Diagram


Note

When the mounting method is selected as vertical mounting, pay attention to the outlet port


    Drawings(Click on the picture to enlarge it)
     Downloads
Auto CAD PDF
Step
Specs Sheet
Manual
