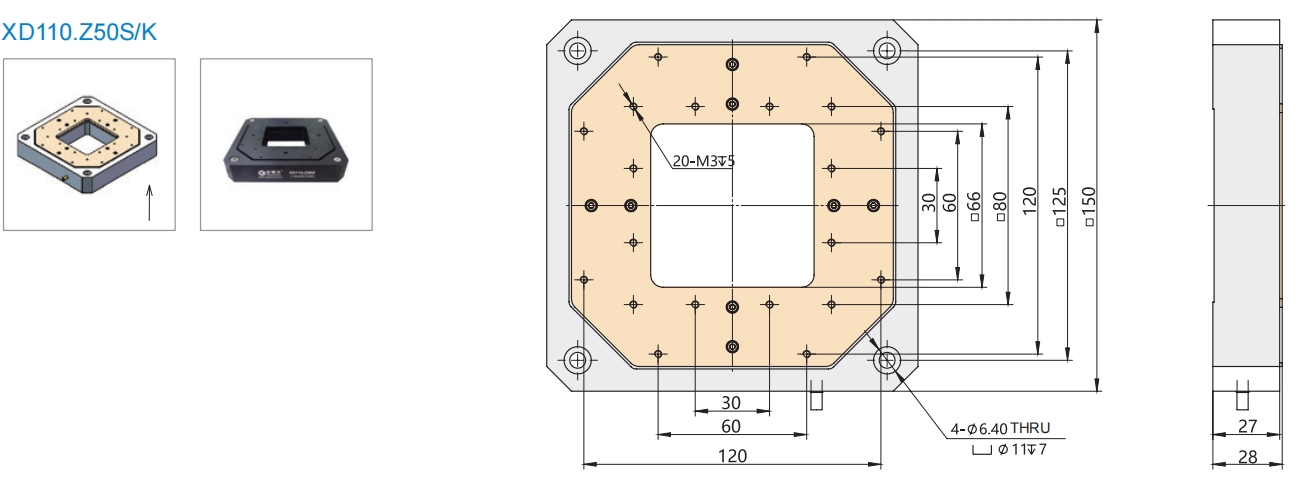

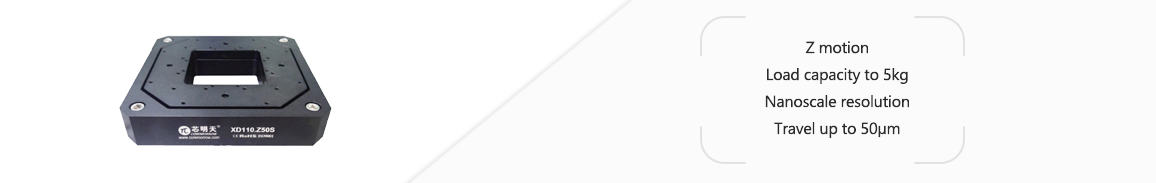

XD110.Z50 piezo scanner moves in Z, its travel is up to 50μm. It has a large square aperture, and is ideal for sample microscopy imaging applications.
Characteristics
|
|
|
|
|
|
|
|
|
|
| Technical Data | ||||
|
Type |
XD110.Z50S |
XD110.Z50K |
Units |
|
|
Active axes |
Z |
Z |
|
|
|
Drive control |
1 driving channel |
1 driving channel |
|
|
|
Nominal travel range(0~120V) |
40 |
40 |
µm±10% |
|
|
Max.travel range(0~150V) |
50 |
50 |
µm±10% |
|
|
Sensor type |
SGS |
- |
|
|
|
Resolution |
2 |
0.5 |
nm |
|
|
Linearity |
0.27 |
- |
%F.S. |
|
|
Repeatability |
0.023 |
- |
%F.S. |
|
|
Unloaded resonant frequency |
370 |
370 |
Hz±20% |
|
|
Resonant frequency@5kg |
100 |
100 |
Hz±20% |
|
|
Load capacity |
Horizontal |
5 |
5 |
kg |
|
Vertical |
0.1 | 0.1 | ||
|
Inverted |
0.5 | 0.5 | ||
| Step time |
60@5kg |
10 |
ms±20% |
|
|
El. Capacitance |
5.6 |
5.6 |
μF±20% |
|
|
Material |
Al, Steel |
Al, Steel |
|
|
|
Mass |
1.1 |
1.1 |
kg±5% |
|
| Mounting Method |
Horizontal Mounting |
Vertical Mounting |
Inverted Mounting |
| Definition |
Place the PZT platform horizontally for installation, with the moving surface located above the PZT platform and parallel to the horizontal plane.
PS: Default direction for carrying capacity in the parameter table
|
Place and install the PZT platform vertically, with the moving surface parallel to the direction of gravity
|
Place the PZT platform horizontally, but the moving surface is located below the PZT platform |
| Diagram |
 |
 |
 |
| Note |
When the mounting method is selected as vertical mounting, pay attention to the outlet port |
||
