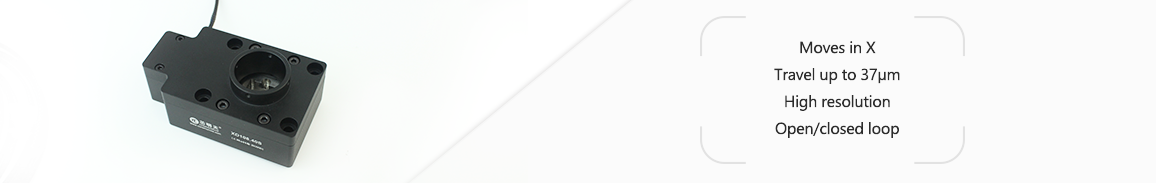

XD108 is a customized version of X-axis piezo nanopositioning scanner, with two ranges available: 30μm and 37μm. It adopts a no-friction flexible hinge guiding mechanism and integrated structural design. It is equipped with high-performance piezo actuators to ensure 37μm displacement.


Characteristics


 Moves in X

 Travel up to 37μm

 High resolution

 Open/closed loop






Applications


 Optical phase shift

 Nano positioning

 Biotechnology

 Quality assurance test

 Micromachining/precision control





   Technical Data

Type

XD108.30S

XD108.30K

XD108.40S

XD108.40K

Units

Active axes

X

X

Drive control

1 driving channel
1 sensing channel

1 driving channel
1 sensing channel

Nominal travel range(0~120V)

24

30

µm±10%

Max.travel range(0~150V)

30

37

µm±10%

Sensor type

SGS/-

SGS/-

Resolution

1/0.3

2/0.4

nm

Linearity

0.302/-

0.03/-

%F.S.

Repeatability

0.021/-

0.01/-

%F.S.

Unloaded resonant frequency

3300

2200

Hz±20%

Loaded resonant frequency

1200@17kg

1000@74g

Hz±20%

Load capacity

Horizontal

0.1

0.1

kg

Vertical
0.03 0.02
Inverted
0.1 0.1
  Step time
5@17g/1
5@74g/1
ms±20%

El. Capacitance

2.5

3.6

μF±20%

Material

Al, Steel

Al, Steel

Mass

600

620

g±5%


Mounting Method Horizontal Mounting
Vertical Mounting
Inverted Mounting
Definition
   Place the PZT platform horizontally for installation, with the moving surface located above the PZT platform and parallel to the horizontal plane.
PS: Default direction for carrying capacity in the parameter table

  Place and install the PZT platform vertically, with the moving surface parallel to the direction of gravity
PS:There are multiple vertical installation methods, and the technical data corresponds to the minimum load capacity

  Place the PZT platform horizontally, but the moving surface is located below the PZT platform

Diagram


Note

When the mounting method is selected as vertical mounting, pay attention to the outlet port

     Drawing (Click on the picture to enlarge it)
点击图片可放大查看
    Downloads
Auto CAD PDF

Step

Specs Sheet
Manual
