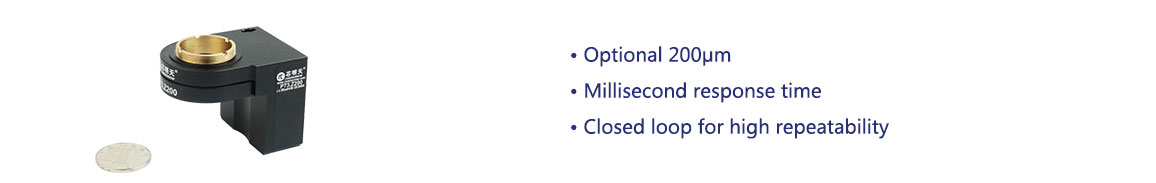

- Introduction
- Feedback
Characteristics
|
|
|
|
|
|
|
|
|
|
|
Adjustable response time
|
Driving and Control
|
Match brands/sizes of objectives
|
|
Thread Adapter for Easy Integration P73 series objective positioner is connected to the objective lens through an adapter to quickly make the objective lens in the desired position. A variety of thread adapters are available, such as M27×0.75, M26×0.75, M26×1/36", M25×0.75, W0.8×1/36", etc., which can also be customized for easy integration with the microscope. |

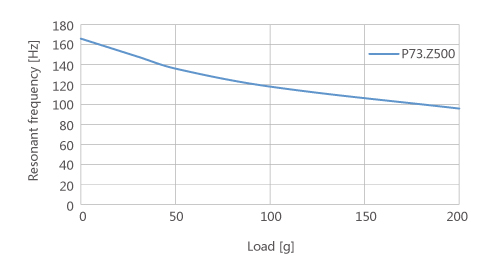

Frequency and Load Curve
|
Surface Analysis
|
Applications
|
|
|
|
|
|
|
|
|
|
| Technical data | |||
|
Models |
S-Closed loop K-Open loop |
P73.Z200S-C1 P73.Z200K-C1 |
Units |
|
Active axis |
Z |
|
|
|
Drive control |
1 driving channel 1 sensing channel |
|
|
|
Travel range（0~120V） |
160 |
μm±10% |
|
|
Travel range（0~150V） |
200 |
μm±10% |
|
|
Sensor |
SGS/- |
|
|
|
Closed/open loop resoluiton |
5.5/2 |
nm |
|
|
Linearity |
0.1/- |
%F.S. |
|
|
Repeatability |
0.05/- |
%F.S. |
|
|
Push/pull force |
80/10 |
N |
|
|
Stiffness |
0.25 |
N/μm±20% |
|
|
Unloaded resonant frequency |
210 |
Hz±20% |
|
|
Closed/open loop unloaded step time |
20/10 |
ms±20% |
|
|
Load |
0.2 |
kg |
|
|
Capacitance |
7.2 |
μF±20% |
|
|
Material |
Steel, Al |
|
|
|
Mass |
210 |
g±5% |
|
Note: Above parameters are measured with the E00/E01 series piezo controller. The maximum driving voltage can be -20V~150V; for high reliability long-term use, the recommended driving voltage is 0~120V.
