H81A.XYZ20S/K Long Travel Piezo Stage
  • Introduction
  • Feedback

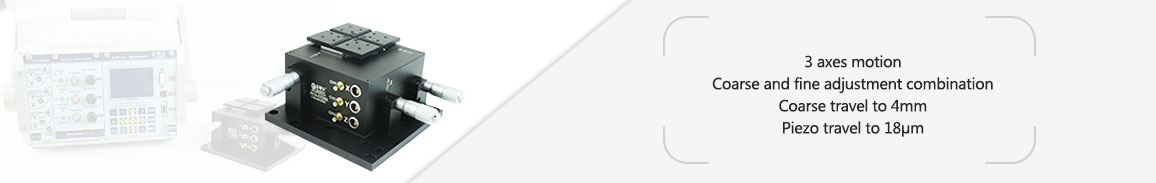

Characteristics


3 axes motion

Coarse and fine adjustment combination

Coarse travel to 4mm

Piezo travel to 18μm

With sensor




    Technical Data

Type

End with S - closed loop
End with K - open loop

H81A.XYZ20S

H81A.XYZ20K

Units

Active axes

X、Y、Z

X、Y、Z

Manual Adjustment - Micrometer

Travel range

4

4

mm±10%

Accuracy

500

500

μm/turn±10%

Fine Adjustment - Piezo

Travel range(0~150V)

18

18

μm±20%

Sensor

SGS

-


Resolution

1

0.2

nm

Linearity

0.3

-

%F.S.

Repeatability

0.2

-

%F.S.

Load capacity

1

1

kg

El.capacitance

1.8

1.8

μF/axis±20%

Material

Steel, Al

Steel, Al


Mass

1(Cable not included)

1(Cable not included)

kg±5%

Driving channels

3 driving channels , 3 sensing channels

3 driving channels

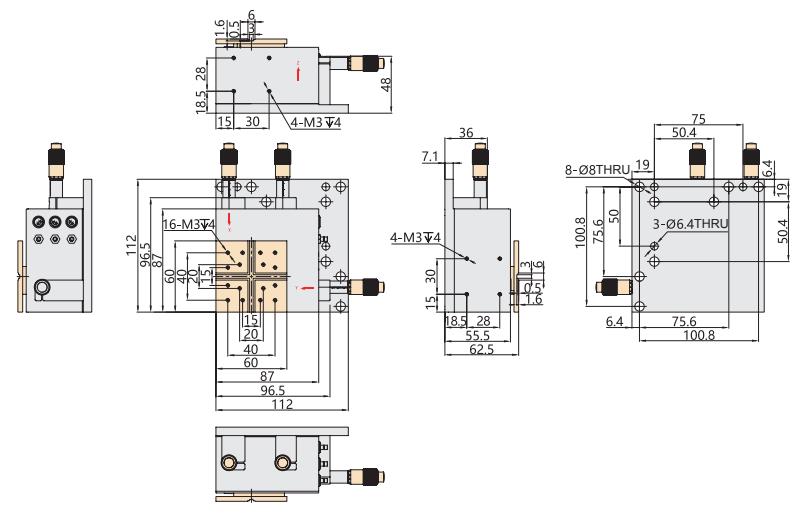

    Drawing (Click on the picture to enlarge it)
Click on the picture to enlarge it
    Downloads
Auto CAD PDF
Step
Specs Sheet
Manual

    3D diagram presentation
