CoreMorrow E01.A Series High Voltage Amplifier with output -500 to +1500V

Introduction
Feedback

E01.A series high voltage piezo amplifier is designed for driving high voltage piezo actuators , like MFC micro fiber composite. Its output range is up to -500 to 1500V, and controlled by analog input signal.

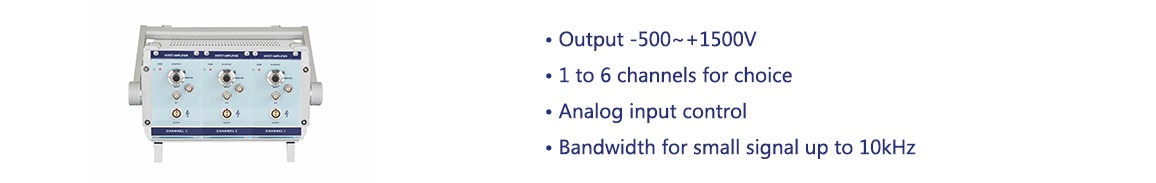

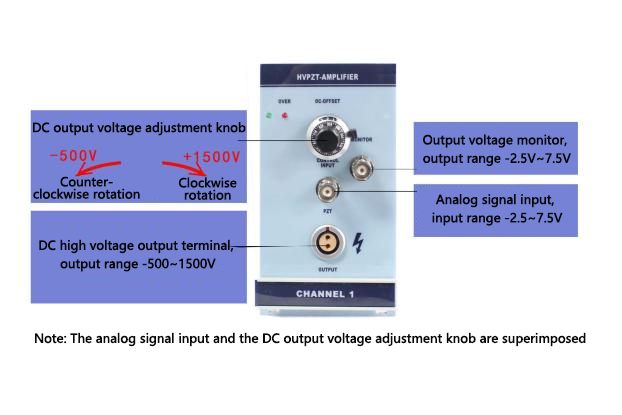

Characteristics

Output -500~+1500V

1 to 6 channels for choice

Analog input control

Bandwidth for small signal up to 10kHz

Frequency vs Load Curve

Application

Driving MFC micro fiber composite

Driving high voltage piezo stack

Driving high voltage piezo actuator, etc.

Technical Data
Type	E01.A1	E01.A2	E01.A3	E00.A4	E00.A5	E00.A6
Appearance
Control	Analog input	Analog input	Analog input	Analog input	Analog input	Analog input
Channels	1	2	3	4	5	6
Input range(V)	-2.5~7.5	-2.5~7.5	-2.5~7.5	-2.5~7.5	-2.5~7.5	-2.5~7.5
Output voltage(V)	-500~1500	-500~1500	-500~1500	-500~1500	-500~1500	-500~1500
Output ripple	50mVp-p(@1μF)	50mVp-p(@1μF)	50mVp-p(@1μF)	50mVp-p(@1μF)	50mVp-p(@1μF)	50mVp-p(@1μF)
Stability	<0.1%F.S./8hours	<0.1%F.S./8hours	<0.1%F.S./8hours	<0.1%F.S./8hours	<0.1%F.S./8hours	<0.1%F.S./8hours
Input impedance(KΩ)	100	100	100	100	100	100
Bandwidth(kHz)	2	2	2	2	2	2
Small signal bandwidth(kHz)	10	10	10	10	10	10
Ave.current	17mA@1000V, 1μF	17mA@1000V, 1μF	17mA@1000V, 1μF	17mA@1000V, 1μF	17mA@1000V, 1μF	17mA@1000V, 1μF
Peak current(mA)	55	55	55	55	55	55
Short-circuited proof(mA)	26	26	26	26	26	26
Control input connector	BNC-50KY female	BNC-50KY female	BNC-50KY female	BNC-50KY female	BNC-50KY female	BNC-50KY female
Voltage output connector	EGG.2B.302.CLL	EGG.2B.302.CLL	EGG.2B.302.CLL	EGG.2B.302.CLL	EGG.2B.302.CLL	EGG.2B.302.CLL
Power supply	AC 220V±10%, 50Hz±10%	AC 220V±10%, 50Hz±10%	AC 220V±10%, 50Hz±10%	AC 220V±10%, 50Hz±10%	AC 220V±10%, 50Hz±10%	AC 220V±10%, 50Hz±10%
Current limit	Short-circuited proof	Short-circuited proof	Short-circuited proof	Short-circuited proof	Short-circuited proof	Short-circuited proof
Size L×H×D(mm)	280×175×375	280×175×375	280×175×375	500×175×375	500×175×375	500×175×375
Heat dissapation	Fan	Fan	Fan	Fan	Fan	Fan

Drawing (Click on the picture to enlarge it)

Downloads
Auto CAD PDF
Step
Specs Sheet
Manual	E01	E00E01 Series Piezo Controller
