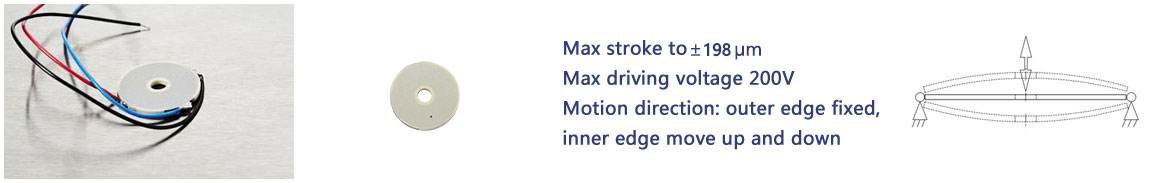

Bending Ring ActuatorsCurrent Location:Product Homepage >> Piezo Bender Actuators>>Bending Ring Actuators
  • Technical Data
  • Feedback
    Technical Data

Models

Diameter
OD[mm]

Inner DiameterID[mm]

Height
H [mm]±0.1

Voltage[V]

Stroke
[μm]±15%

Resonant Frequency
[kHz]±20%

El.capacitance
[nF]±15%

Stiffness
[N/μm]±20%

Blocking Force
[N]±20%

Max

Operating

Tempreture[]

Electrodes

NAC2322

(CMBR02)

20(±0.6)

4(±0.15)

1.25

±100 or 200

±28.8

8

2×410

0.84

24.2

150

Fired-on Ag

NAC2323

(CMBR03)

20(±0.6)

4(±0.15)

1.8

±100 or 200

±22

8.2

2×620

1.22

26.8

150

Fired-on Ag

NAC2324

(CMBR04)

30(±0.9)

6(±0.2)

0.7

±100 or 200

±112

3.1

2×470

0.12

13.6

150

Fired-on Ag

NAC2325

(CMBR05)

30(±0.9)

6(±0.2)

1.25

±100 or 200

±78

4.2

2×980

0.45

35

150

Fired-on Ag

NAC2327

(CMBR07)

40(±1.2)

8(±0.25)

0.7

±100 or 200

±198

1.45

2×820

0.06

12.7

150

Fired-on Ag

NAC2328

(CMBR08)

40(±1.2)

8(±0.25)

1.25

±100 or 200

±150

2.3

2×1800

0.28

41.4

150

Fired-on Ag
