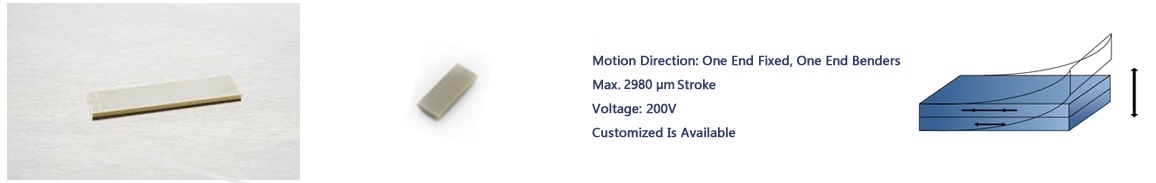

Bending Plate ActuatorsCurrent Location:Product Homepage >> Piezo Bender Actuators>>Bending Plate Actuators
  • Technical Data
  • Feedback
    Technical Data

Models

L
[mm]

W
[mm]±0.15

H
[mm]±0.1

Voltage[V]

Free stroke, max.
[μm]±15%

Unloaded resonance frequency
[Hz]±20%

Capacitance
[nF]±15%

Stiffness
[N/μm]±20%

Blocking force, max.
[N]±20%

 Operating
Tempreture[℃]
Electrodes

Mtp01

21(±0.45)

7.8

0.7

±100/200

±210

920

2×105

0.0071

1.5

150 Ag

Mtp02

21(±0.45)

7.8

1.3

±100/200

±140

1600

2×220

0.0393

5.5

150
Ag

Mtp03

21(±0.45)

7.8

1.8

±100/200

±95

2300

2×330

0.109

10.4

150
Ag

Mtp04

32(±0.65)

7.8

0.7

±100/200

±530

340

2×170

0.0017

0.92

150
Ag

Mtp05

32(±0.65)

7.8

1.3

±100/200

±365

620

2×350

0.0093

3.4

150
Ag

Mtp06

32(±0.65)

7.8

1.8

±100/200

±250

890

2×520

0.0248

6.2

150
Ag

Mtp07

50(±0.1)

7.8

0.7

±100/200

±1490

130

2×280

0.0004

0.58

150
Ag

Mtp08

50(±0.1)

7.8

1.3

±100/200

±1000

230

2×560

0.0021

2.1

150
Ag

Mtp09

50(±0.1)

7.8

1.8

±100/200

±700

330

2×860

0.0057

4.0

150
Ag

017591

10(±0.2)

5

0.7

±100/200

±40

3850

2×31

0.039

1.56

150
Ag

017592

10(±0.2)

5

1.3

±100/200

±27.5

6900

2×63

0.229

6.3

150
Ag
