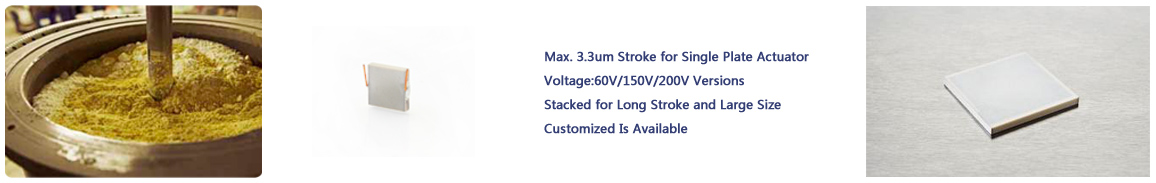

Plate Piezo ActuatorsCurrent Location：Product Homepage >> PZT Ring/Plate Actuators>>Plate Piezo Actuators

Technical Data
Feedback

Technical Data
Models	L[mm]xW[mm]	H[mm]	Voltage[V]	Stroke [μm]±15%	El.capacitance [nF]±15%	Resonant Frequency [kHz]±20%	Stiffness [N/μm]±20%	Blocking Force [N]±20%	Weight [g]±5%	Installation Precautions
MTP01	2x2	2	60	3	150	＞486	56	168	0.07
MTP02	3x2	2	60	3	400	＞486	126	378	0.15
MTP03	5x5	2	60	3	1080	＞486	350	1050	0.37
MTP11	2x2	2	150	3.3	25	＞486	51	168	0.05
MTP12	3x3	2	150	3.3	65	＞486	115	378	0.14
MTP13	5x5	2	150	3.3	190	＞486	318	1050	0.4
MTP14	7x7	2	150	3.3	380	＞486	624	2060	0.79
MTP15	10x10	2	150	3.3	760	＞486	1273	4200	1.58
MTP21	7x7	2	200	3.3	220	＞486	624	2060	0.78
MTP22	10x10	2	200	3.3	440	＞486	1273	4200	0.61
MTP23	15x15	2	200	3.3	970	＞486	2864	9450	3.66
MTP17	20×20	2	200	3.3	1800	＞486	5091	16800	6.4
MTP24	3x3	2	200	1.9	25	＞500	161	290	0.14
MTP25	5x5	2	200	1.9	80	＞500	400	800	0.38
