E71.SERVO-H Piezo Motor Control ModuleCurrent Location：Product Homepage >> Piezo motor controller>>E71.SERVO-H Piezo Motor Control Module
Board-type piezo motor servo controller from CoreMorrow
  • Introduction
  • Feedback

E71.SERVO-H Piezo Motor Control Module is a small volume controller specially designed for driving piezo motor. It is easy to integrate and can be used to drive various piezo motors.

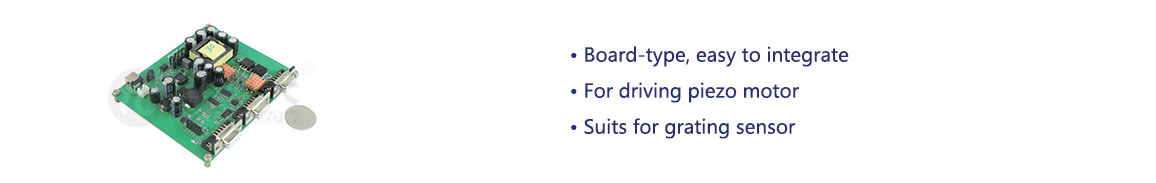

Characteristics


 Board-type, easy to integrate

 For driving piezo motor

 Suits for grating sensor

    Technical Data

Type

E71.SERVO-H

Units

Control way

Servo control


Power supply

24VDC/1A（20~30）

V

Static dissipation

<5

W

Processor

32bit 168MHz


D/A converter

16bit


Communication port

RS-422、RS-232


Rated output power

9

W

Operating temperature

0~50

℃

Short-circuited current

60

mA

PZT connector

DB9


Sensor connector

DB9


Communication connector

DB9


Size

118×100×22.5

mm

Mass

175

g±5%
    Drawings（Click on the picture to enlarge it）
none
    Downloads
Auto CAD PDF
Step
Specs Sheet
Manual
