E53.D2E-K handheld piezo motor controller is servo controller that supports software control and handle control. Communication interface is USB or RS-232/422 serial port, and software supports secondary development. It has 2 output channels and can simultaneously drive 2 linear piezo motors.
Characteristics
|
|
|
|
|
|

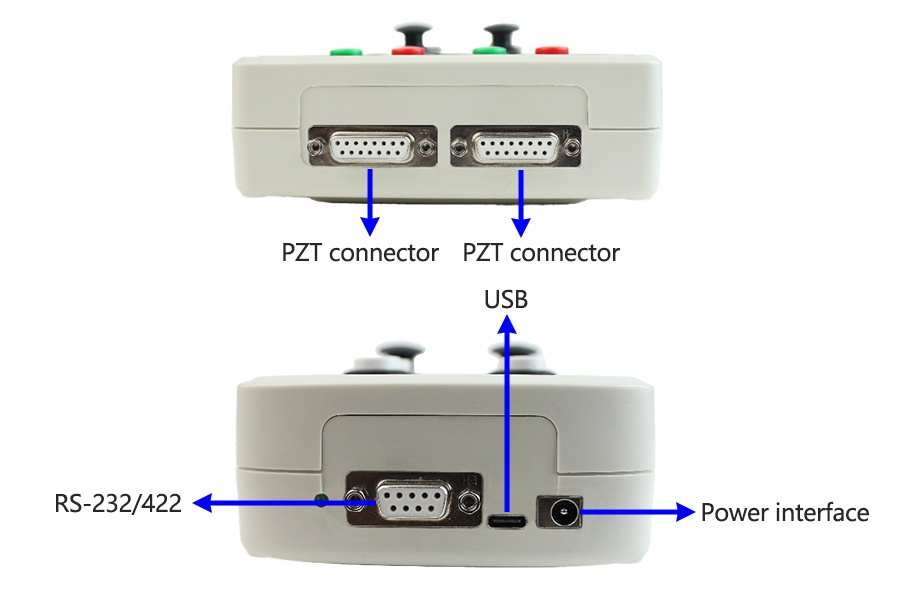

Panel Introduction
|

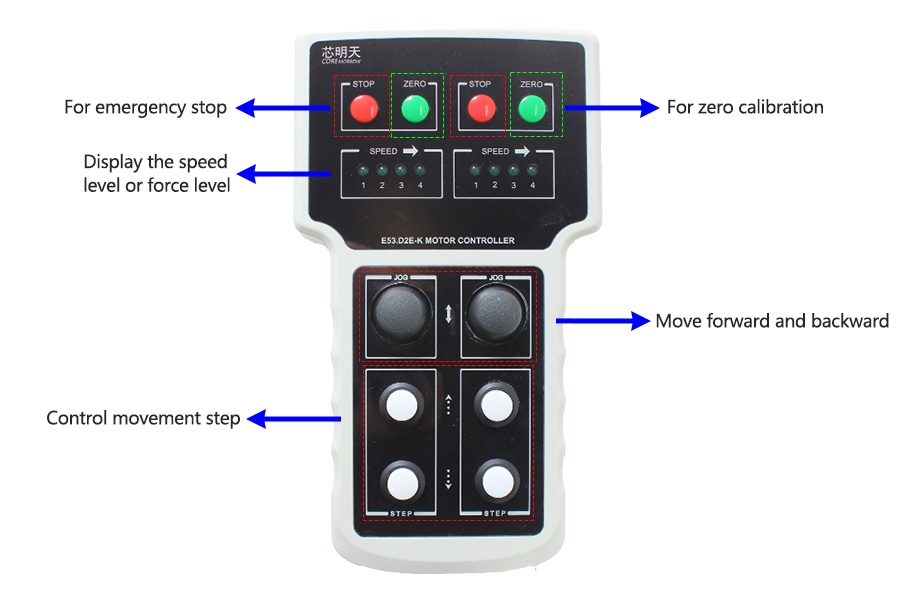

Panel Introduction
|
| Technical Data | ||
|
Type |
E53.D2E-K |
Units |
|
Servo control |
Servo control |
|
|
Channels |
2 |
|
|
Power supply |
24V DC/2.5A(20~30V) |
|
|
Static dissipation |
＜5 |
W |
|
Processor |
32bit 480MHz |
|
|
D/A converter |
16bit |
|
|
Communication interface |
TYPE-C、RS-422、RS-232 |
|
|
Rated output |
9 |
W |
|
Operating temperature |
0~50 |
℃ |
|
Output short-circuited current |
60 |
mA |
|
PZT connector |
DB15 |
|
|
Communication connector |
DB9、TYPE-C |
|
|

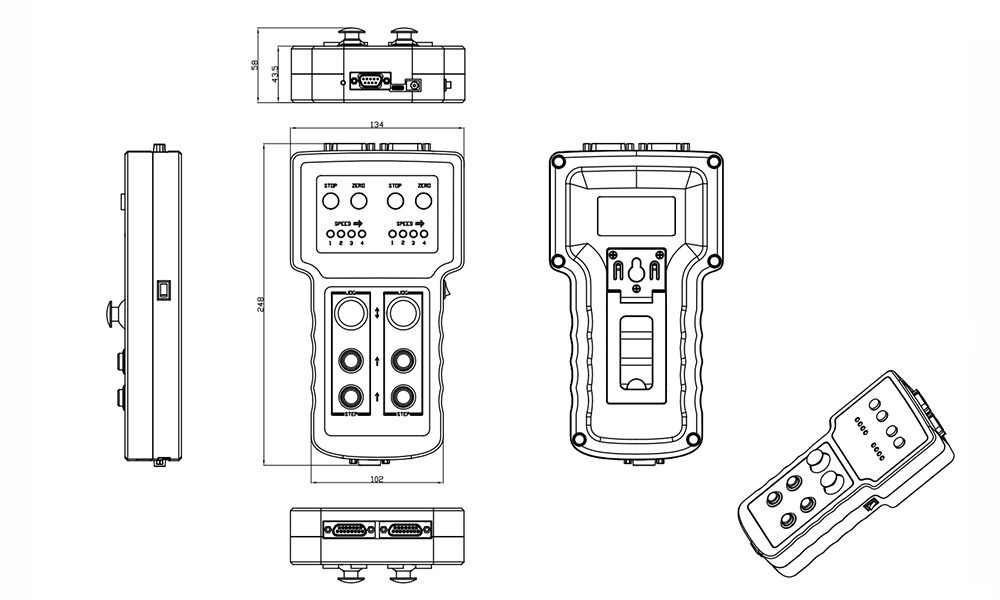

Size |
134×58×248 |
mm3 |
|
Mass |
260 |
g±5% |
