The E53.C50K-H multi-channel piezo motor controller has 50 channels output. It can drive up to 50 Piezo motor actuators through switching modes, and can drive up to 13 piezo motor actuators simultaneously. It also features a compact size with a maximal dimension of 310×156×113mm^3. The body has a heat-dissipating area that quickly conducts the heat generated. The number of output channels can be customized according to user needs.
Characteristics
|
|
|
|
|
|

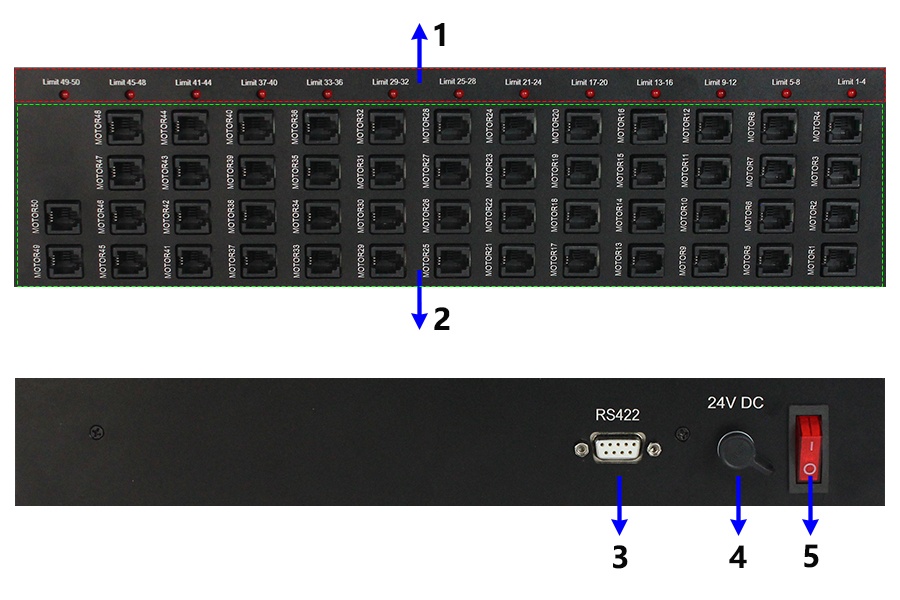

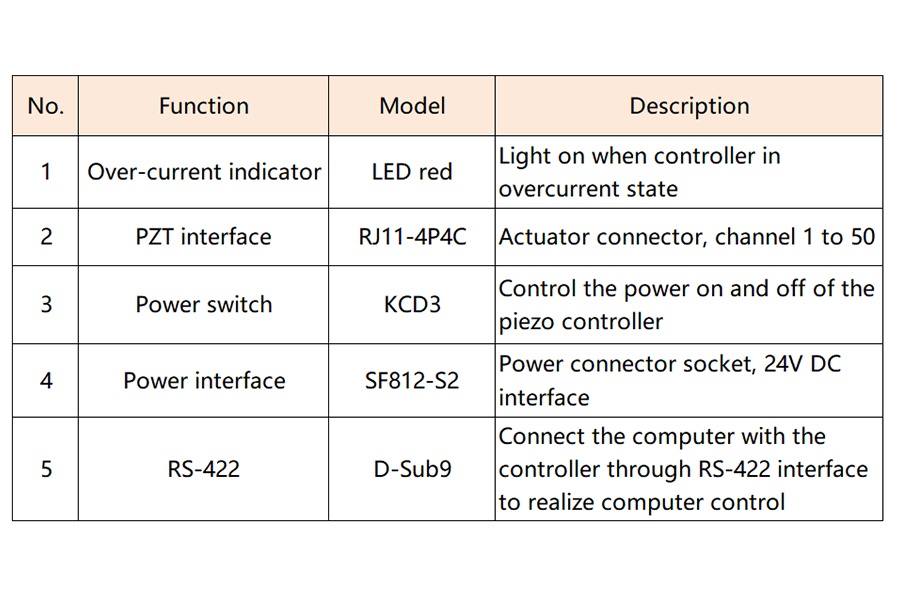

Panel Introduction
|
Panel Introduction
|
| Technical Data | |
|
Type |
E53.C50K-H |
|
Function |
Digital controller |
|
Channels |
50 |
|
Static power consumption(W) |
54 |
|
Processor |
32bit 168MHz |
|
D/A converter |
16bit |
|
Communication interface |
RS-422 |
|
Communication connector |
D-Sub9 |
|
Rated output power(W) |
120 |
|
Operating temperature(℃) |
0~50 |
|
PZT connector |
RJ11 |
|
Current limit |
Short-circuited proof |
|
Power supply |
24VDC/15A(20V~30V) |
|
Power Interface |
SF812-S2 |
|

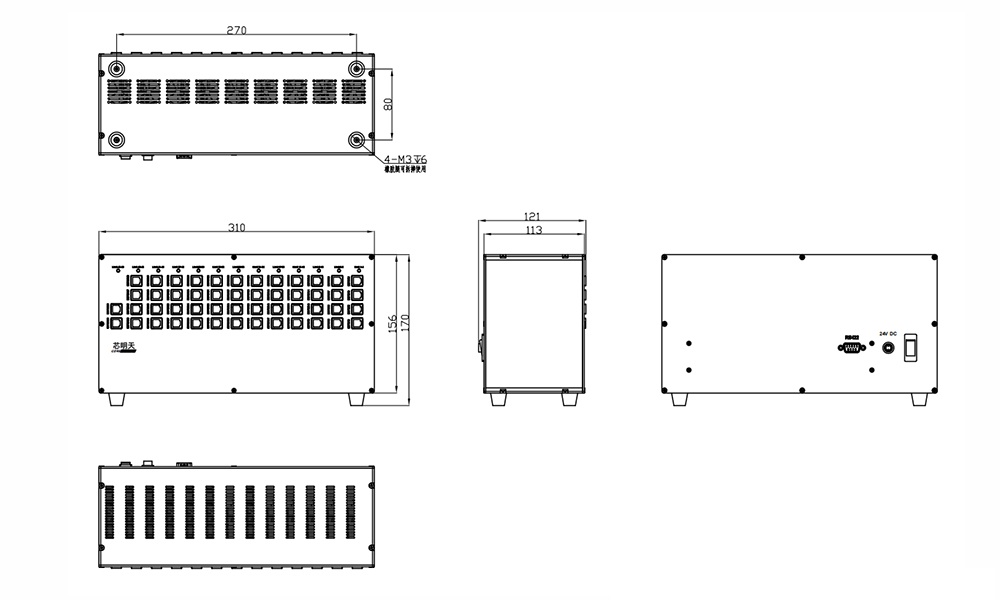

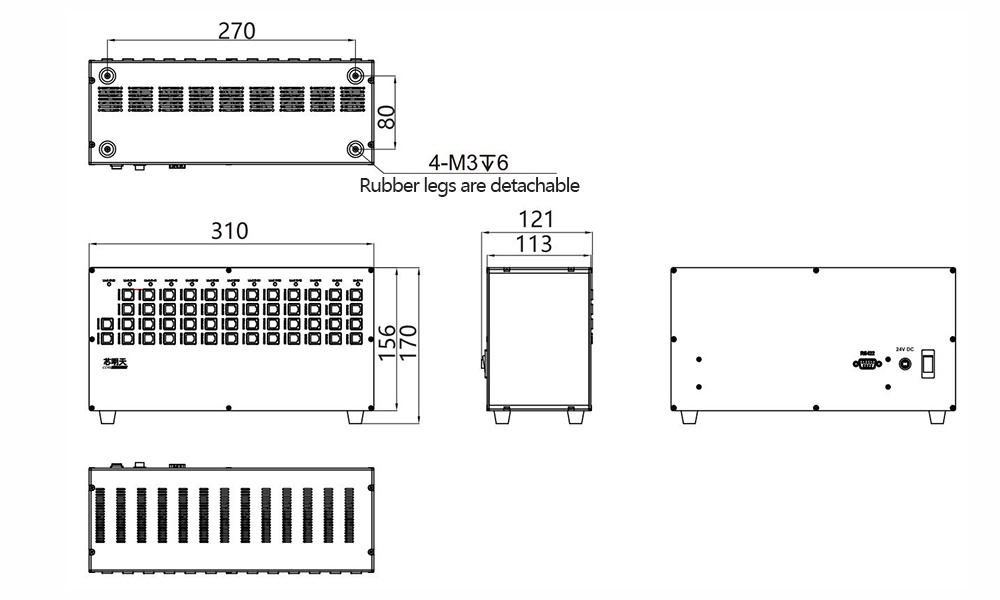

Size(mm) |
310×156×113 |
|
Mass(kg) |
4.3 |
