The E53.C12K-J piezo motor controller has 12 output channels and can switch to control 12 open-loop versions of piezo motors. It can be controlled through the digital signal of the upper computer. It has multiple communication interfaces such as USB/RS-232/RS-422, which can realize real-time communication with the upper computer and support secondary software development. Parameters such as the number of movement steps and the movement period can be set through the software. The product can be used to drive piezo motors in batches.
Characteristics
|
|
|
|
|
|

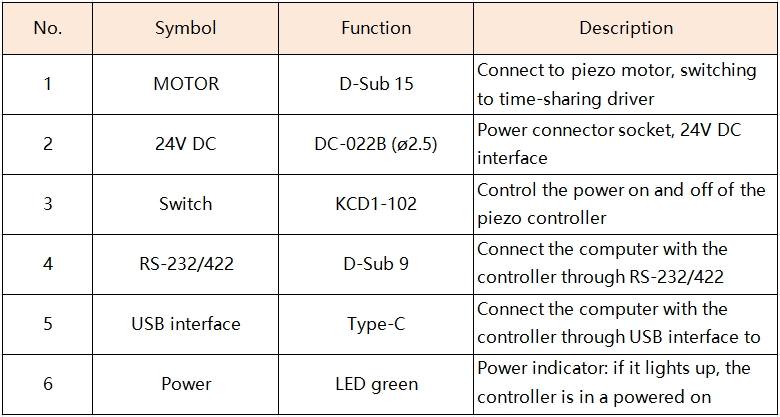

Panel Introduction
|
Panel Introduction
|
| Technical Data | |
|
Type |
E53.C12K-J |
|
Servo control |
Open loop |
|
Channels |
12 |
|
Input supply |
24V DC 2.5A |
|
Static power(W) |
＜5 |
|
Processor |
32bit 480MHz |
|
D/A converter |
16bit |
|
Communication interface |
Type-C、RS-232、RS-422 |
|
Rated output(W) |
9 |
|
Operating temperature(℃) |
0~50 |
|
Size(mm) |
289×34×104 |
|
Mass(g) |
680 |
