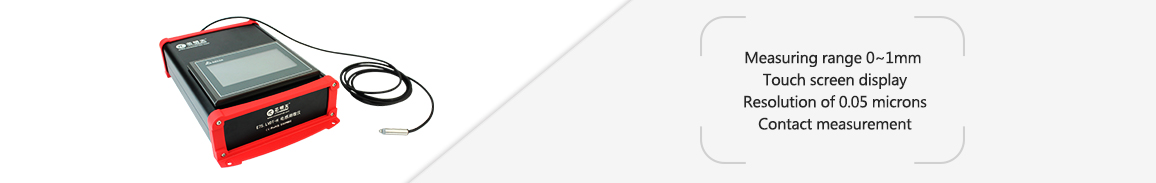

Type

E75.LVDT-H

    Measuring range(mm)

0~1mm

    Channels

Single Channel

    Resolution(μm

0.05μm

    Display update frequency

10/s

    Screen type

Touch

    Display type

Digital rebound

    Sensor reading rate

200 readings per second

    Analog output(mA)

Voltage or 4~20 optional

    Operating temperature(°C)

5~50℃

    Storage temperature(°C)

-20~50℃

    Accuracy (percentage of readings)

0.05% or 0.1μm, whichever is larger

    Repeatability (worst case)

0.15μm, the difference between the maximum and minimum
values of the carbide surface was measured several times
when the lateral force was used for the bearing

    Repeatability (typical)

0.05μm, one standard deviation of multiple measurements
of cemented carbide surface results (68%)

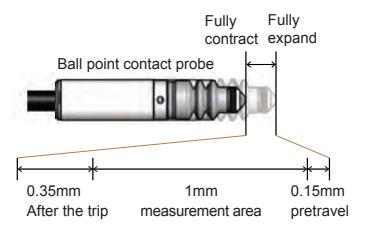

    pretravel(mm)

0.15

    After the trip(mm)

0.35

    Spring driven (force measurement in middle position)

0.70N±20%

    Temperature drift coefficient of

0.01%FS/ºC

    Probe life (number of runs)

100 million (without side load), more than 10 million in most applications

    Probe shell material

Steel

    Probe materia

Tungsten carbide

    Computer interface mode

RS-232、RS-485

    Function

Data acquisition, storage, triggering, etc

    Mass（g±5%）

1285
