Piezo Strain Sensors, Sensitivity: 40mV/µεCurrent Location:Product Homepage >> Displacement Measuring/Sensor etc.>>Piezo Strain Sensors, Sensitivity: 40mV/µε

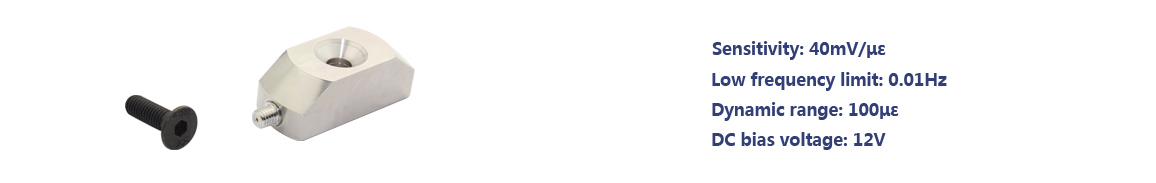

CoreMorrow piezo strain sensor
  • Introduction
  • Feedback

Strain sensors are mainly used to measure the deformation of a structural surface. Generally, during the entire process of applying force, the mechanical load-bearing structure will be strained by a tensile or compressive force greater or lesser than the required force. The strain sensor can perform indirect dynamic and quasi-static force measurement on it, and the relationship between the force and strain is linear enough to effectively meet the requirements of accurate measurement and monitoring. When using strain for indirect measurement, the force split can be close to 99%, much higher than direct measurement.

Strain sensors can be used for process monitoring of force, such as welding force monitoring. The sensor is equipped with electronics and IEPE interface. The converter type is 10-32UNF.


Characteristics


 Sensitivity: 40mV/με

 Lower limit of low frequency: 0.01Hz

 Acceleration compensation

 Application: process monitor of force

    Technical data

Parameter

Min.

Typ.

Max.

Unit

Measured unit

Strain in longer axis direction


Sensitivity


40


±10% at room temperature.
Calibration is done by comparison with
a strain gauge.

Polarity

Positive for applied tension


Low frequency limit


0.01


Hz

Resonance frequency


14.7


kHz

Dynamic range


100


µε

Connector


Coaxial 10-32 UNF



Supply current

2

4

20

mA

DC bias voltage

8

12

14

V

DC bias stabilization


60


s

Mounting screw


M6×20, conical head



Mounting torque

3

5

10

Nm

Temperature range

-40


+85

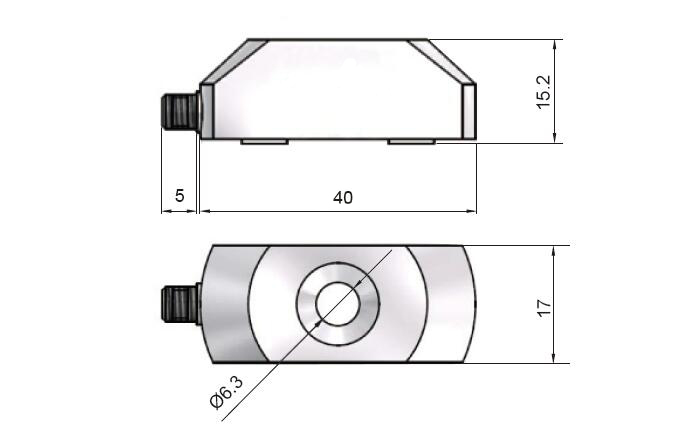

    Drawings(Click on the picture to enlarge it)

    Downloads
Auto CAD PDF
Step
Specs Sheet
Manual
