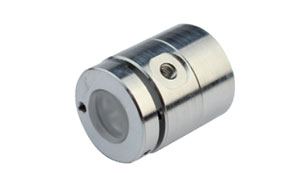

N25.T6K Piezo Motor Driven Tip/Tilt StageCurrent Location：Product Homepage >> Angular piezo motor>>N25.T6K Piezo Motor Driven Tip/Tilt Stage
  • Introduction
  • Feedback

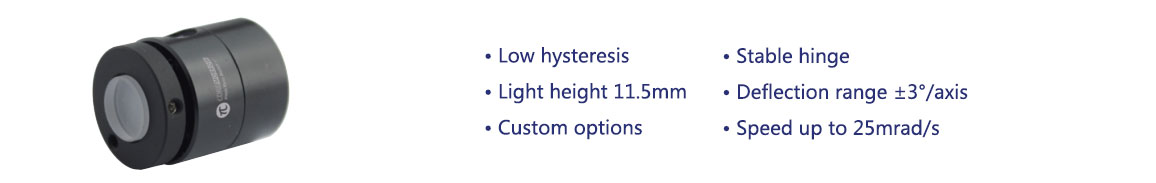

Characteristics


 Low hysteresis

 Light height 11.5mm

 Custom options

 Stable hinge

  Deflection range ±3°/axis

 Speed up to 25mrad/s

 Self-locking at rest, requires no current

  Minimum step can reach 0.3μrad (F30 controller)

 For dia. 12.7mm mirror(With lens adapter to carry larger lenses)

  Self-locking at rest, requires no current


Optional vacuum version

    Technical Data

Type

N25.T6K

Units

Active axes

θx θy

Deflection angle

6/±3

°

Speed

25

mrad/s±20%

Mirror mount

Ø12.7

mm

Transmittance aperture

9

mm

Dimensions (diameter × height)

25×30.5

mm

Mass

46

g

Load capacity

100

g

Resolution

Single step

14

μrad±20%

1/16 step (U30 controller)

1

μrad±20%

1/64 step (F30 controller)

0.3

μrad±20%

1/2 step

7

μrad±20%

Double step

28

μrad±20%


Recommended Controller


E53.C4K/C1K-J

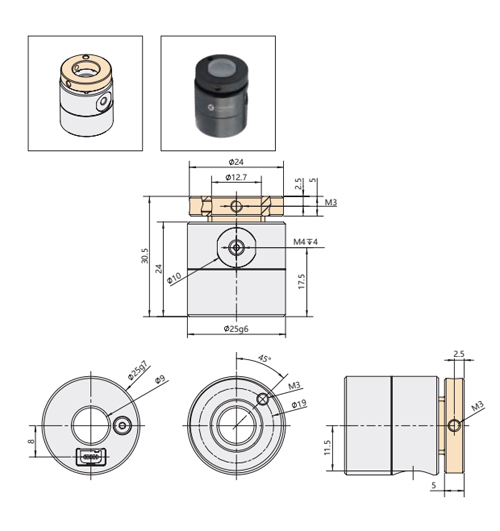

     Drawings（Click on the picture to enlarge it）
     Downloads
Auto CAD PDF
Step
Specs Sheet
Manual
