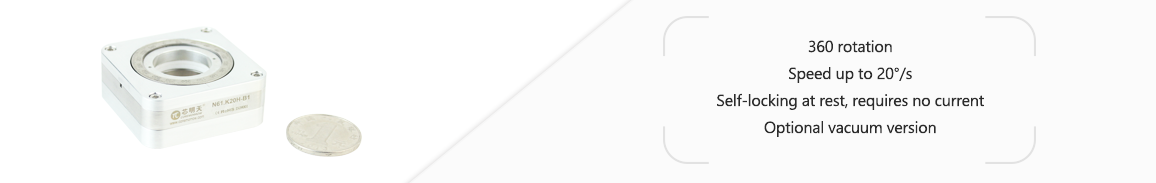

N61.K20-B piezo motor is an open loop version piezo motor direct-driven by piezo actuators. It uses special mechanical structure design to convert linear micro displacement by piezo actuators into macro-angle rotation motion of mechanical platform. It has 360° rotary motion and has an ultra-high rotation resolution of 10μrad.
Characteristics
|
|
|
|
|
|
|
|
|
|
360 rotation|
Recommended Controller
E53.C1K-J |
| Technical Data | ||
|
Type |
N61.K20-B |
Units |
|
Active axes |
360， Two-way |
° |
|
Speed limit |
20 |
°/s±20% |
|
Max. Central loading |
0.5 |
kg |
|
Resolution |
10 |
μrad±20% |
|
Eccentricity |
0.02 |
mm |
|
Cable length |
1.5 |
m±10mm |
|
Operating temperature |
10~40 |
℃ |
|
Storage temperature |
-10~40 |
℃ |
|
Material |
Al, Steel |
|
|
Mass(including wires and connectors) |
165 |
g±5% |
|
Recommended Controller |
E53.C1K-J |
|
