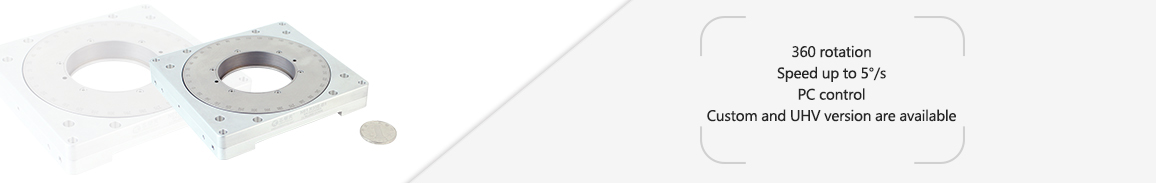

N61.E/K56-B piezo motor is a piezo motor direct-driven by piezo ceramics. It uses special mechanical structure design to convert linear microdisplacement by piezo ceramics into macro-angle rotation motion of mechanical platform. It has 360° rotary motion and has a 1μrad rotation resolution. Its low profile is suitable for integration. With E53 piezo controller, it can be operated by PC software, which is more convenient. Custom and UHV version are available.
Characteristics
|
|
|
|
|
|
|
360 rotation| Technical data | |||
|
Type |
N61.E56-B |
N61.K56-B |
Units |
|
Active axes |
360, Two-way |
360, Two-way |
° |
|
Integrated sensor |
grating sensor |
- |
|
|
Speed limit |
5 |
5 |
°/s±20% |
|
Central loading |
1 |
1 |
kg |
|
Resolution |
1 |
5 |
μrad±20% |
|
Repeatability |
0.001 |
- |
°±20% |
|
Eccentricity |
0.02 |
0.02 |
mm |
|
Cable length |
1.5 |
2 |
m±10mm |
|
Operating temperature |
10~40 |
10~40 |
℃ |
|
Storage temperature |
-10~40 |
-10~40 |
℃ |
|
Material |
Steel, Al |
Steel, Al |
|
|
Mass |
640 |
615 |
g±5% |
|
Recommended controller |
E53.D1E-J |
E53.C1K-J |
|
