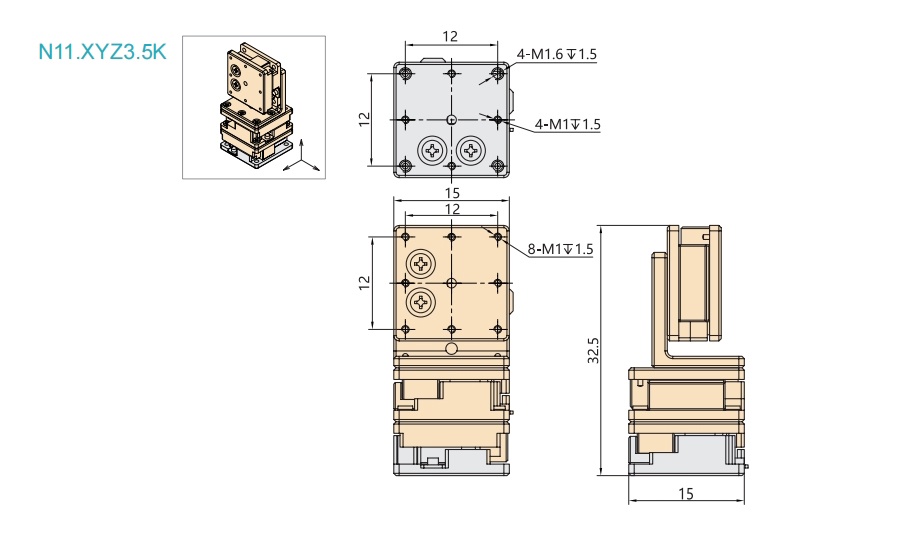

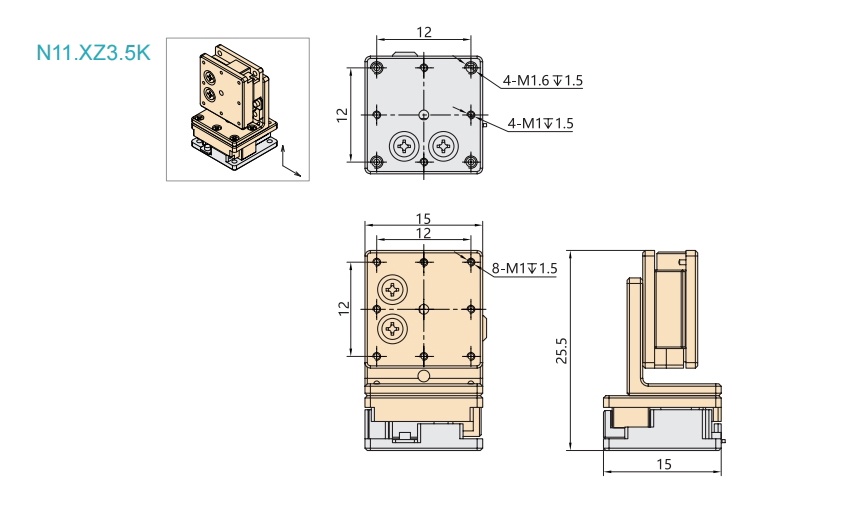

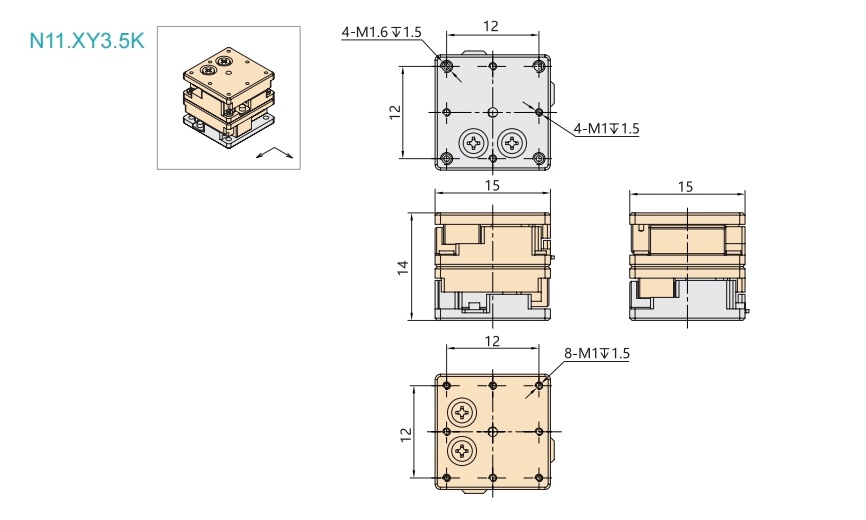

The N11 series linear piezo motor adopts the principle of stick-slip and convert the micro -movement of PZT piezo actuator into a millimeter -level long travel.According to the active axes, it can be divided into four specifications: X, XY, XZ, and XYZ.It is very small, only 15 × 15 × 7mm^3. However, its travel can be as high as 3.6mm, which is very suitable for adjustment and application of the millimeter range in the limited space.

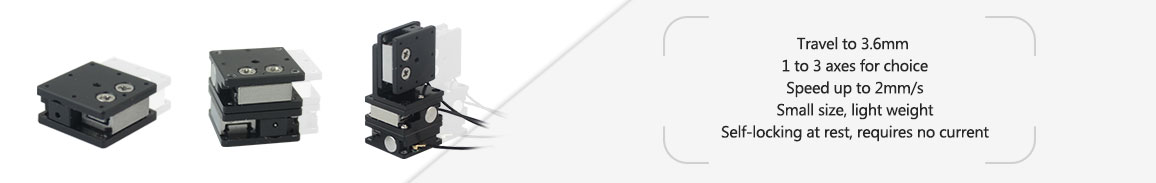

Characteristics
|
|
|
|
|
|
|
|
|
|
Travel to 3.6mm|
N11 vacuum version
|
Application
|
|
|
|
|
|
|
|
|
|
|
|
| Technical Data | |||
|
Type |

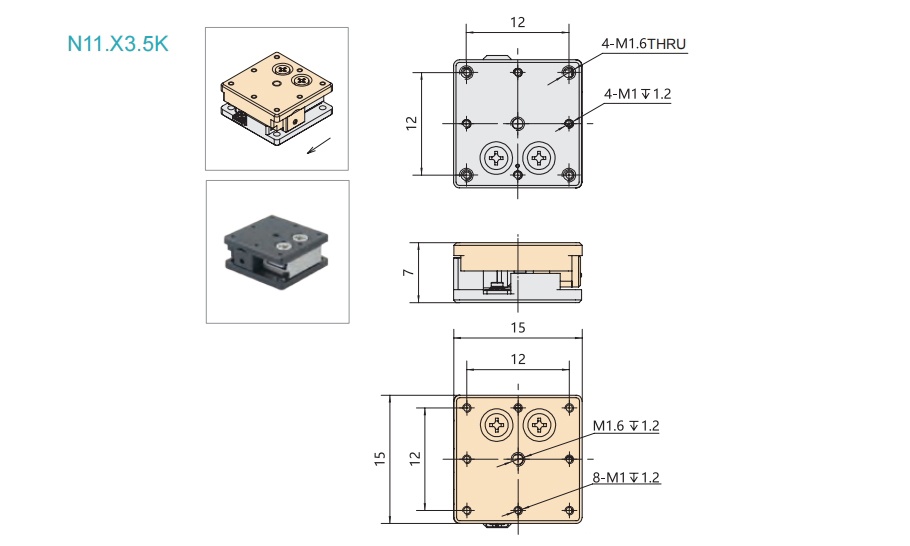

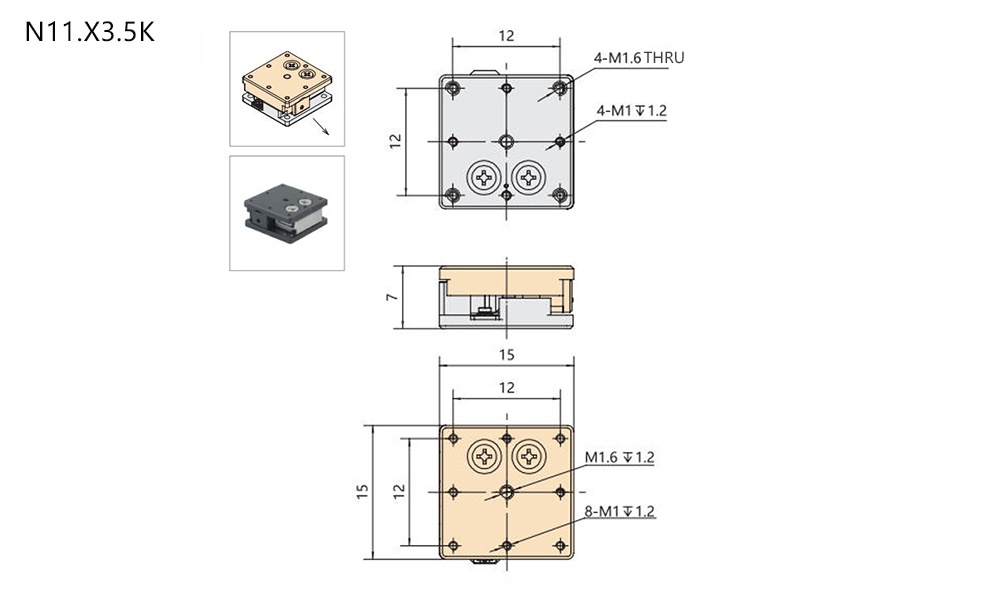

N11.X3.5K |
Units |
|
|
Active axes |
X |
|
|
|
Nominal travel range |
3.6/±1.8 |
mm |
|
|
Max speed |
2 |
mm/s |
|
|
Open loop resolution |
20 |
nm |
|
|
Max force |
0.5 |
N |
|
|
Holding force(Passivity) |
1.5 |
N |
|
|
Load capacity |
Horizontal |
0.1 |
kg |
|
Vertical |
0.02 |
kg |
|
|
Axial stiffness |
1 |
N/μm±10% |
|
|
Lateral stiffness |
2 |
N/μm±10% |
|
|
Operating temperature |
0~50 |
°C |
|
|
Cable length |
1.5 |
m±10% |
|
|
Material |
Al, stainless steel |
|
|
|
Mass (not include cable) |
6 |
g±10% |
|
|
Recommended controller |
E53.C1K-J |
|
|
