E51.D7S Piezo Controllers, 7 ChannelsCurrent Location:Product Homepage >> Small-Size Controllers>>E51.D7S Piezo Controllers, 7 Channels
  • Introduction
  • Feedback

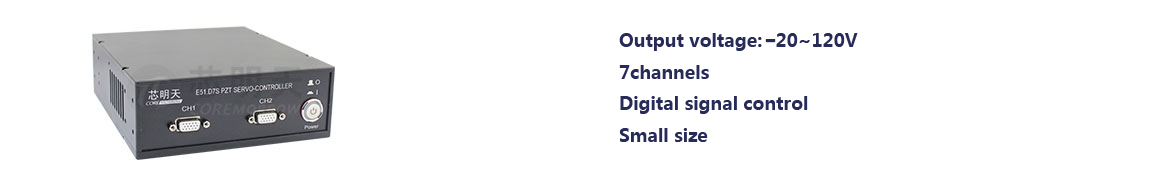

Characteristics


 Output voltage: -20~120V

 7 channels

 Digital signal control

 Small size

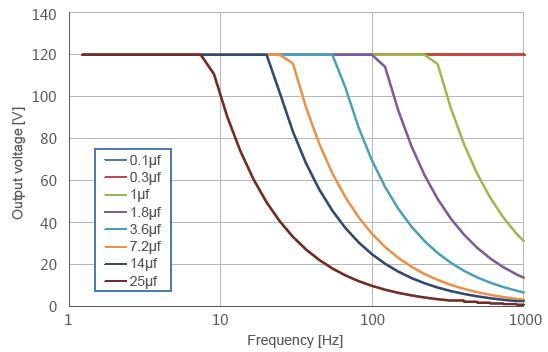

Frequency vs Load Curve

    Technical data

Models

E51.D7S

Function

Servo controller

Control mode

Digital signal

Drive

Channels

7

Analog input(V)

-

Output voltage(V)

-20~120, one constant voltage

Peak currentmA

185/channel

Ave. currentmA

25/channel

Input powerW

90

BandwidthkHz

1

Output voltage ripple(mV)

51.8μF

Sensor

Sensor type

SGS

Servo

Analog P-I

Others



Dimensionmm

156×57×181

Operating temperature(℃)

0~50

Input connector(PWR&CTL)

-

Output connector (PZT&Sensor)

HDB15(hole)

Overcurrent protection

Yes

Communication interface

D-SUB 9-hole socket

Massg

1450

Static powerW

7.2

Heat dissipation

Normal

Power supplyV DC

24

Communicate interface

DC-044B-J( 2.5)

Communication

RS-422

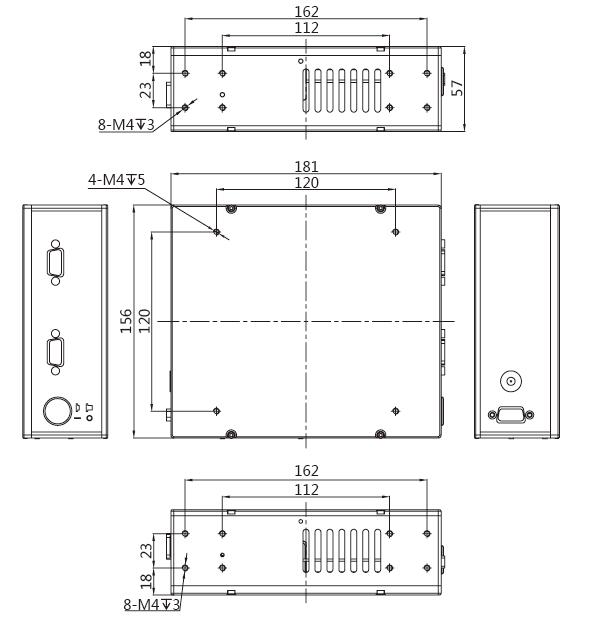

    Drawings(Click on the picture to enlarge it)

    Downloads
Auto CAD PDF
Step
Specs Sheet
Manual
