The F30.P3N3E macro and micro composite piezo stage is composed of the CoreMorrow P63.XYZ7S high-resolution piezo nanopositioning stage and the N56.XYZ10E piezo motor stage with millimeter travel. The macro-motion travel can reach 10mm per axis, and the micro-motion travel can reach 8.5μm per axis. The overall structure can achieve a millimeter-level travel range and sub-nanometer resolution at the same time, making it suitable for large-stroke and high-precision applications.

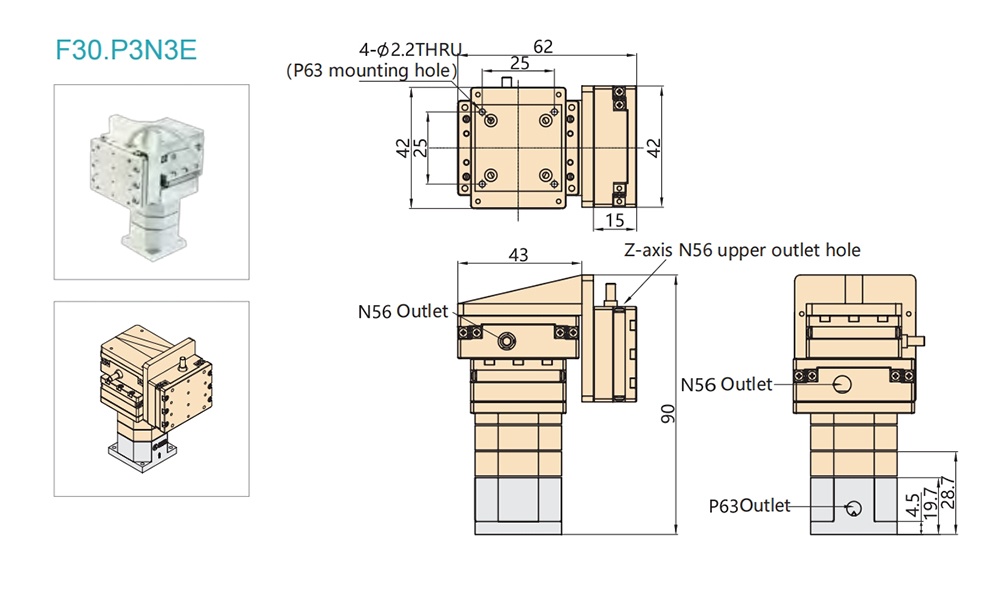

Characteristics
|
|
|
|
|
| Technical Data | ||
|
Type |
F30.P3N3E |
Units |
|
Active axes |
X、Y、Z |
|
|
Travel range (Coarse + Fine) |
10+8.5 |
mm+μm |
|
Material
|
Al |
|
|
Load capacity |
100 |
g |
|
Coarse Adjustment
|
||
|
Type |
N56.XYZ10E |
|
|
Active axes
|
X、Y、Z |
|
|
Travel range
|
10 or ±5/axis |
mm±10% |
|
Sensor
|
Grating sensor
|
|
|
Resolution
|
6 |
nm±20% |
|
Max speed
|
4 |
mm/s±20% |
|
Linearity
|
2.13 |
μm |
|
Repeatability
|
0.48 |
μm |
|
Controller
|
E53.D1E-J |
|
|
Fine Adjustment
|
||
|
Type |
P63.XYZ7S |
|
|
Active axes
|
X、Y、Z |
|
|
Drive control
|
3 driving channels
3 sensing channels
|
|
|
Travel range
|
8.5/axis |
μm±10% |
|
Sensor
|
SGS |
|
|
Resolution
|
0.2 | nm |
|
Linearity
|
0.4 |
%F.S. |
|
Repeatability
|
0.2 |
%F.S. |
|
Pitch/yaw/roll
|
＜15 |
μrad |
|
El. capacitance
|
0.8/axis |
μF±20% |
