The N55.X20 series linear piezo motor stage can achieve a displacement of 21mm in the X direction. Through piezo stick-slip micro-drive technology, the micro-deformation generated by piezo actuator is converted into a linear millimeter-level stroke. This piezo motor stage is small in size and compact in structure, with dimensions of only 32×17×10mm^3, making it very easy to integrate into precision equipment. Both open and closed-loop versions are available. The closed-loop version is equipped with a built-in grating sensor, which can provide real-time feedback on displacement information and achieve high-precision positioning.
Characteristics
|
|
|
|
|
|
|
|
|
| Technical Data | ||||
|
Type |
E-Closed loop
K-Open loop |
N55.X20E32 |
N55.X20K32 |
Units |
|
Active axes |
X |
X |
|
|
|
Integrated sensor |
Grating sensor |
- |
|
|
|
Travel range |
21or±10.5 |
21or±10.5 |
mm | |
|
Speed limit |
5 |
5 |
mm/s±20% | |
|
Resolution |
5 |
5 |
nm±20% | |
| Force | 2 | 2 | N | |
|
Holding force(Passivity) |
3.5 |
3.5 |
N | |
|
Load capacity |
Horizontal |
0.5 |
0.5 |
kg |
| Vertical | 0.1 | 0.1 | kg | |
|
Operating temperature |
0~50 |
0~50 |
℃ |
|
|
Cable length |
2 |
2 |
m±10mm |
|
|
Material |
Al, Steel | Al, Steel |
|
|

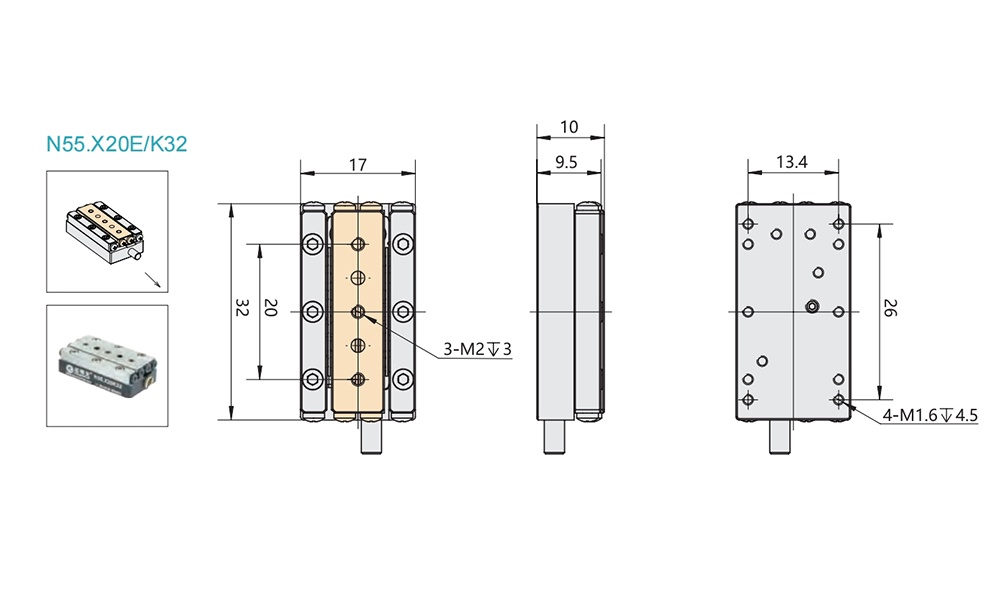

| Size |
32×17×10 |
32×17×10 |
mm^3 | |
| Mass |
21 |
21 |
g±10% |
|
|
Recommended Controller |
E53.D1K-J |
E53.D1K-J |
|
|
|
|
|
