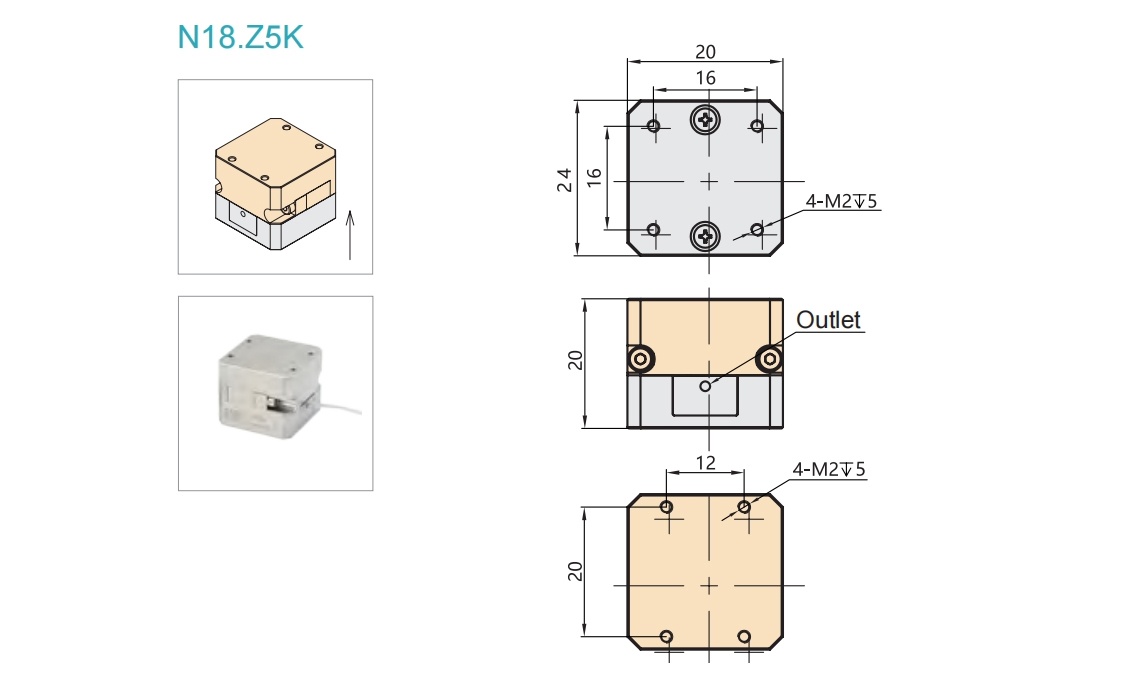

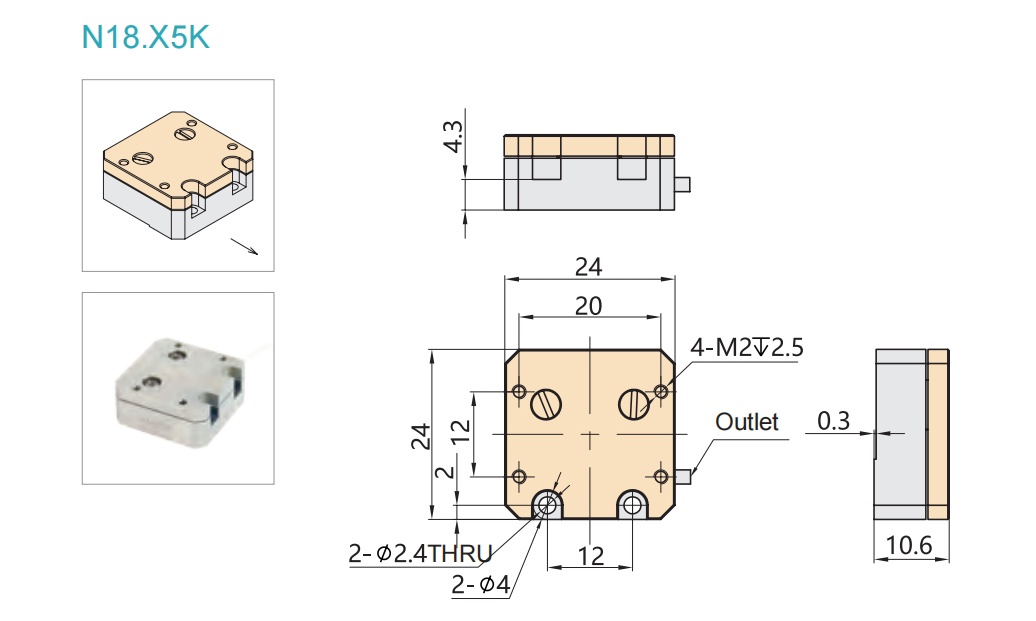

N18 series linear piezo motor stage adopts the principle of stick slip, which can convert the micro motion of PZT piezo actuator into millimeter level travel. The stage is available in two versions, N18.X moving in X and N18.Z moving in Z, both of which can achieve a 5mm linear travel. The material of its platform is titanium, which can be applied in low-temperature, vacuum, non-magnetic environments.
Characteristics
|
|
|
|
|
|
|
|
||
| Technical Data | ||||
|
Type |
N18.X5K |
N18.Z5K |
Units | |
|
Active axes |
X |
Z |
|
|
|
Travel range |
5or±2.5 |
5or±2.5 |
mm | |
|
Speed limit |
3 |
3 |
mm/s | |
|
Resolution |
6 |
6 |
nm | |
| Push/pull force | 3 | 3 | N | |
|
Holding force(Passivity) |
3 |
3 |
N | |
|
Load capacity |
Horizontal |
250 |
- |
g |
| Vertical | - | 150 | g | |
|
Speed limit after loading |
Horizontal |
3@250g |
- | mm/s |
| Vertical | - |
2@150g |
mm/s | |
|
Operating temperature[1] |
-40~50 |
-40~50 |
℃ |
|
|
Cable length |
1.5 |
1.5 |
m±10mm |
|
|
Material |
Ti | Ti |
|
|
| Mass |
19 |
40 |
g±5% |
|
|
Recommended Controller |
E53.C1K-J |
E53.C1K-J |
|
|
|
[1]As the ambient temperature decreases, the speed of the piezoe motor will also decrease.
|
|
