The N56 piezo motor adopts piezo micro-drive technology, which uses piezo micro-displacement actuators to achieve highprecision positioning and movement technology. Macro motion linear millimeter-level stroke is achieved after mechanical structure conversion of the micro-deformation of piezo actuator under electric field.
Characteristics
|
|
|
|
|
|

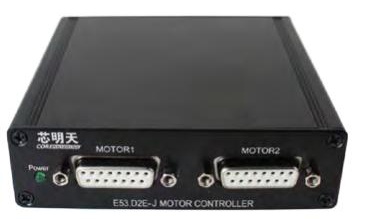

Recommended Controller
E53.D2E-J/E53.C2K-J piezo controller, digital control, servo or open loop |

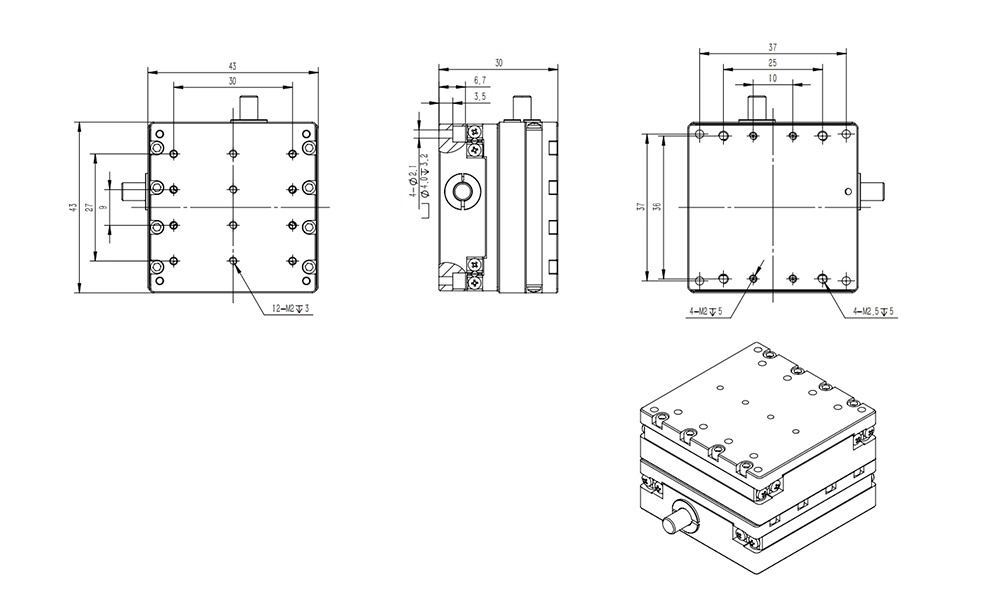

| Technical Data | |||
|
Type |
N56.XY20E |
N56.XY20K |
Units |
|
Active axes |
X、Y |
X、Y |
|
|
Sensor |
Grating sensor |
- |
|
|
Nominal travel |
20 or ±10 |
20 or ±10 |
mm/axis |
|
Max.speed |
3 | 3 |
mm/s±20% |
|
Resolution |
5 |
5 |
nm |
|
Max.force |
2 | 2 | N |
|
Repeatability |
0.2 | - |
μm±20% |
|
Push/pull force(Active) |
2 |
2 |
N |
|
Holding force |
4.5 |
4.5 |
N |
|
Load capacity(horizontal) |
400 |
400 |
g |
|
Axial stiffness |
0.7 |
0.7 |
N/μm±20% |
|
Vertical stiffness |
4.5 |
4.5 |
N/μm±20% |
|
Operating temperature |
0~50 |
0~50 |
℃ |
|
Cable length |
1.5 |
1.5 |
m±10mm |
|
Material |
Al, Steel |
Al, Steel |
|
|
Mass (not include cable) |
155 |
155 |
g±10% |
|
Recommended Controlle |
E53.D2E-J |
E53.C2K-J |
|
