N56.2K Linear Piezo MotorCurrent Location：Product Homepage >> Linear piezo motor>>N56.2K Linear Piezo Motor
  • Introduction
  • Feedback

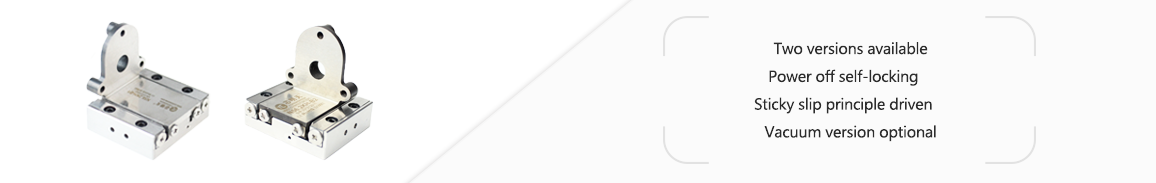

Characteristics


 Two versions available

 Power off self-locking

 Sticky slip principle driven

 Open loop

 Vacuum version optional

    Technical Data

Type

N56.2K/N56.2K-A

Units

Active axes

X



Nominal travel range

3/±1.5

mm

Speed limit

3

mm/s±20%

Resolution

5

nm±20%

Push/pull force(Active)

3

N

Holding force(Passivity)

4.5

N

Max load (horizontal direction)

0.5

kg

Max load (vertical direction)

0.1

kg

Operating temperature

0~50

℃

Cable length

1.5

m

Material

Steel


Mass (not include cable)

70

g±10%

Recommended Controlle

E53.C1K-J

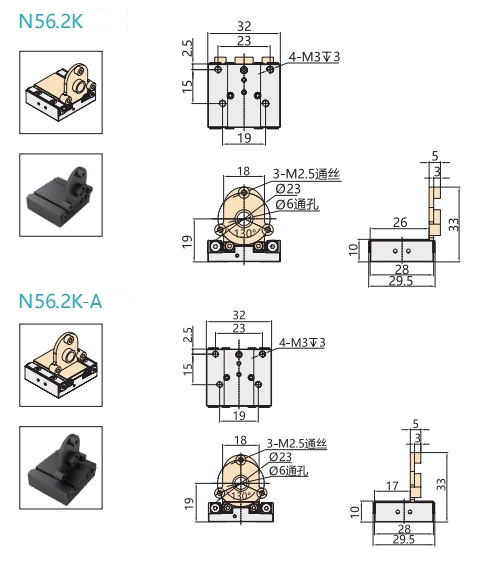

    Drawing （Click on the picture to enlarge it）
点击图片可放大查看
    Downloads
Auto CAD PDF

N56.2K

N56.2K-A

Step

N56.2K

N56.2K-A

Specs Sheet
Manual
