N59 Linear Piezo MotorCurrent Location:Product Homepage >> Linear piezo motor>>N59 Linear Piezo Motor
  • Introduction
  • Feedback

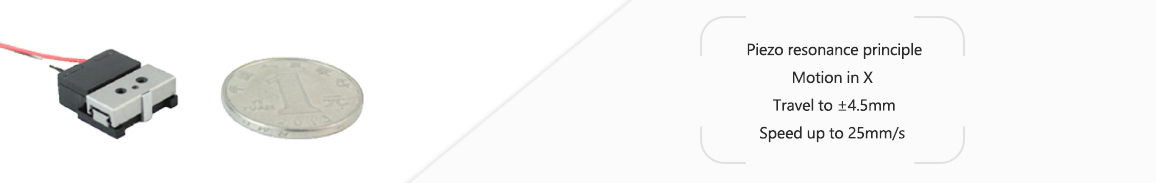

N59 piezo motor is an open-loop version of piezo motor by piezo actuator. It uses special mechanical structure design to convert linear microdisplacement by piezo actuator into macroscopic linear motion in a mechanical plane.
      The N59 can achieve ± 4.5mm displacement in the X direction with a resolution of up to 50nm. It features compact in structure, very suitable for integration. It is minimally affected by external electromagnetic interference and noise. Also it has fast speed, small step size and is uniform and stable. With E66.A2K-H piezo motor control module, it can be controlled by external PWM signal, which is more convenient.


Characteristics


 Piezo resonance principle

 Motion in X

 Travel to ±4.5mm

 Speed up to 25mm/s

 Resolution to 50nm

 Load capacity to 0.2kg

 Power off self-locking



Recommended controller

E66.A2K-H

   Technical Data

Type

N59.9K

Units

Active axes

X



Travel range

9 / ±4.5

mm

Speed limit

25

mm/s±20%

Resolution

50

nm±20%

Load capacity

0.2

kg

Operating temperature

0~50

Cable length

0.1

m

Material

Al, Stainless steel


Mass

4

g±5%

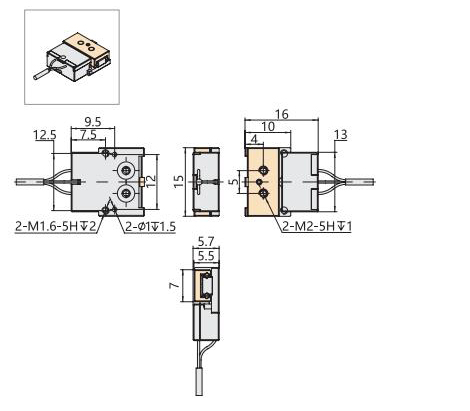

    Drawing (Click on the picture to enlarge it)
点击图片可放大查看
    Downloads
Auto CAD PDF
Step

Specs Sheet
Manual
