N52 Linear Piezo MotorCurrent Location:Product Homepage >> Linear piezo motor>>N52 Linear Piezo Motor
  • Introduction
  • Feedback

N52 linear piezo motor adopts stick-slip principle, and piezo step direct drive. The linear motion range can be 90mm, with a high resolution. Closed-loop sensors (Grating sensor) for high positioning accuracy.

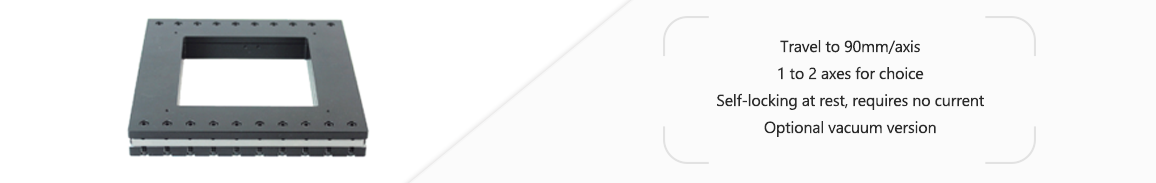

Characteristics


 Travel to 90mm/axis

 1 to 2 axes for choice

 Self-locking at rest, requires no current

 High resolution

 Open/closed loop

 Optional vacuum version




    Technical Data

Type

E-Closed loop
K-Open loop

N52.X90E
N52.X90K

N52.XY90E
N52.XY90K

Units

Active axes

X
X、Y

Integrated sensor

Grating sensor/-
Grating sensor/-

Travel range

90 or ±45

90 or ±45/axis

mm

Speed limit

5 5
mm/s±20%

Resolution

10
10
nm±20%
Max force
3 3 N

Repeatability

1/-
1/-
μm±20%

Holding force

5
5
N

Max load (horizontal direction)

1
0.2
kg

Aperture

95×95 95×95
mm

Minimum aperture

50×95
50×50
mm
Operating temperature
0~50
0~50

Cable length

1.5
1.5
m±10mm
Material
Al, Steel
Al, Steel

Mass (not include cable)
820/800
1640/1600
g±5%
Recommended Controller
E53.D1E/C1K-J
E53.D1E/C1K-J

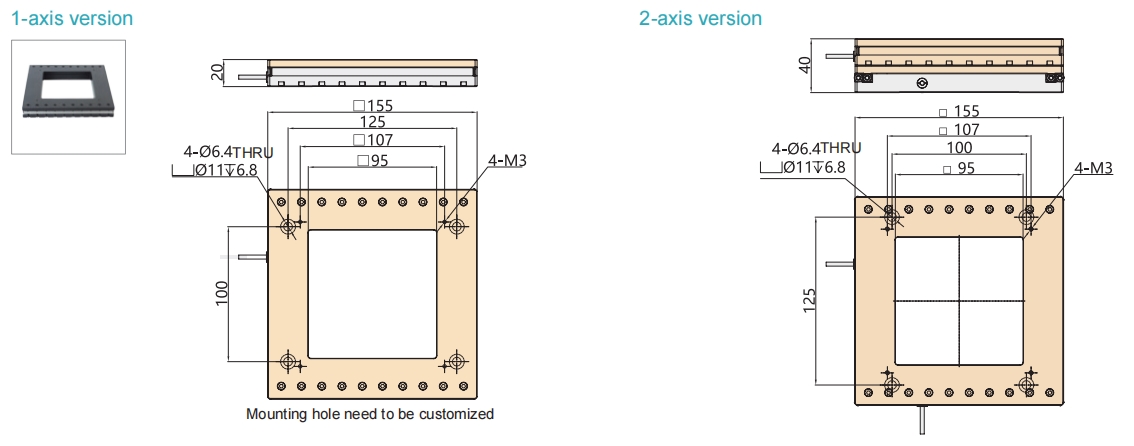

     Drawing (Click on the picture to enlarge it)
点击图片可放大查看
    Downloads
Auto CAD PDF

1-axis

2-axis

Step

Specs Sheet
Manual
