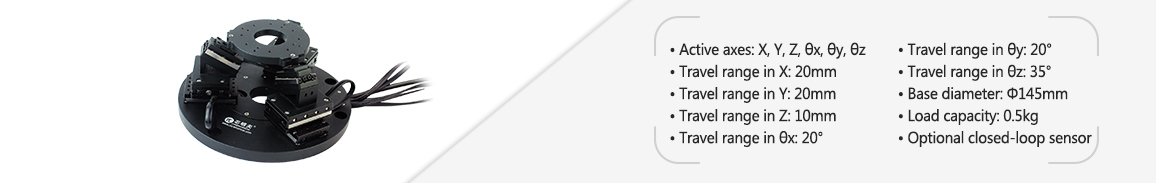

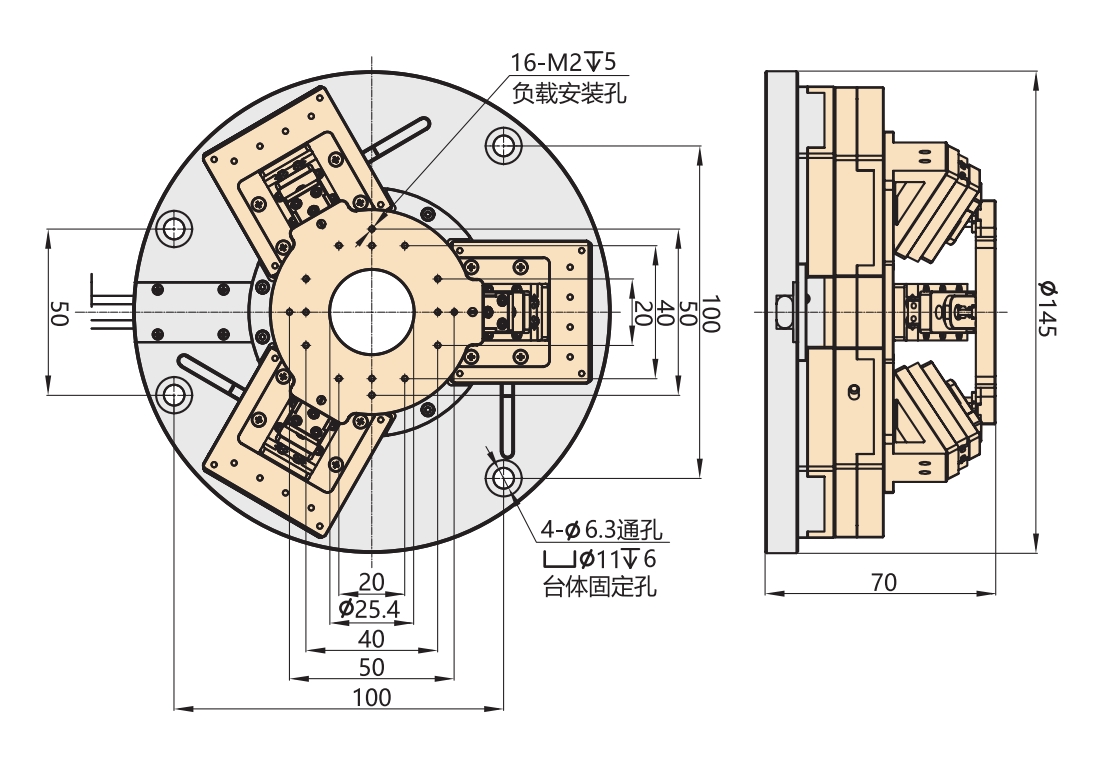

The N56.XYZTR20 stage has 6-axis motion of θx, θy, θz, X, Y, and Z based on CoreMorrow N56 series linear piezo motor. Collaborate with precision algorithms, it is able to achieve high precision 6-axis motion control.
Characteristics
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Recommended Controller
|
| Technical data | ||
|
Type |
N56.XYZTR20E |
Units |
|
Active axes
|
X，Y，Z，θx，θy，θz
|
|
|
Sensor
|
Grating sensor
|
|
|
Travel range in X, Y
|
±10
|
mm |
|
Travel range in Z
|
±5
|
mm |
|
Tilt angle in θx, θy
|
±10
|
° |
|
Tilt angle in θz
|
±15
|
° |
|
Linear resolution
|
X7.7/Y7/Z6.2
|
nm
|
|
Deflection resolution
|
θxθy0.32/θz0.35
|
μrad
|
|
Linearity
|
X0.023/Y0.022/Z0.011/θx0.93/θy1.1/θz0.55
|
%F.S.
|
|
Repeatability
|
X0.019/Y0.012/Z0.01/θx0.06/θy0.04/θz0.035
|
%F.S.
|
|
Load capacity
|
0.5 |
kg |
|
Driving mode
|
Piezo motor
|
|
|
Mass |
1 |
kg±5% |
