N82 Macro-micro complex Piezo ActuatorCurrent Location：Product Homepage >> Piezo actuator/stage>>N82 Macro-micro complex Piezo Actuator

Introduction
Feedback

N82.16K piezoelectric linear actuator combines manual coarse adjustment and piezo fine adjustment. The manual adjustment stroke can reach 9.53mm and the fine adjustment stroke is 16μm.

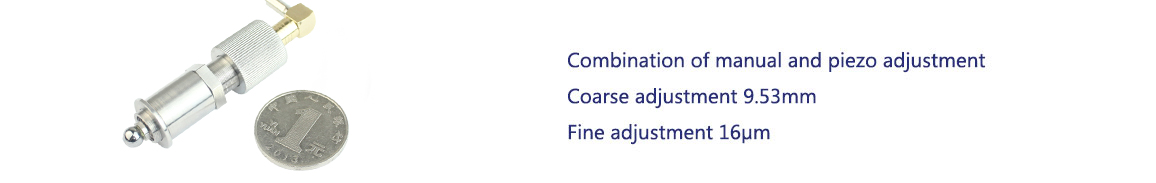

Characteristics

Combination of manual and piezo adjustment

Coarse adjustment 9.53mm

Fine adjustment 16μm

Application

Mirror adjustment frame

Motion platform driver

Scientific research, etc.

Technical Data
Type	N82.16K	Units
Manual motion range	9.53	mm
Piezo motion range (0~150V)	16	μm±20%
Piezo drive voltage	0~150	V
Max force	200	N
El.capacitance	0.8	μF±20%
Operating temperature	-25~85	℃
Mass	60	g±5%
Material	Steel

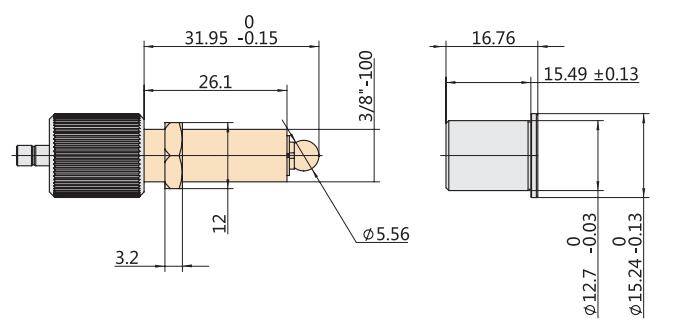

Drawings（Click on the picture to enlarge it）

Downloads
Auto CAD PDF
Step
Specs Sheet
Manual

3D diagram presentation
