Linear Piezo Nanopositioning Stage N81K26X65 N81K26XY65 N81K26XYZ65Current Location：Product Homepage >> Piezo actuator/stage>>Linear Piezo Nanopositioning Stage N81K26X65 N81K26XY65 N81K26XYZ65
  • Introduction
  • Feedback

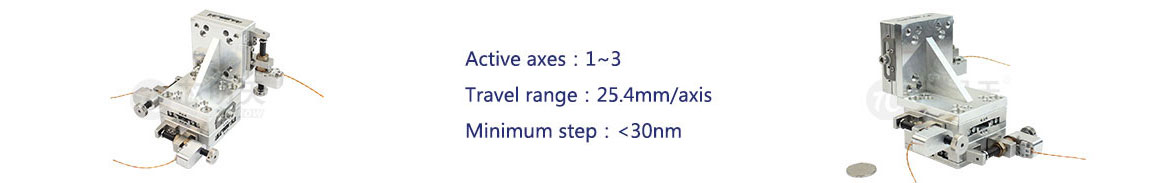

Characteristics


 Active axes：1~3

 Travel range：25.4mm/axis

 Minimum step：<30nm

 Operating temperature：10~40℃


N81K26X65

N81K26XY65

N81K26XYZ65

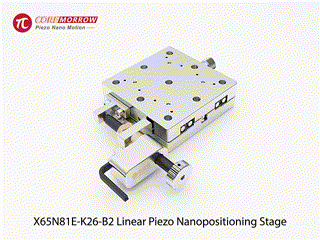

N81K26X65 Standard edition

N81K26X65

    Technical Data

Type

N81K26X65

N81K26XY65

N81K26XYZ65

Units

Active axes

X

X、Y

 X、Y、Z


Travel range

25.4

25.4/axis

25.4/axis

mm±20%

Minimum step

<30

<30

 <30

nm

Center load

Upright

50

50

20

N

Lateral

20

20

15

N

Bearing

Ball

Ball

Ball


Material

Aluminum

Aluminum

Aluminum


Operating temperature

10~40

10~40

10~40

℃

Port

4-Pin

4-Pin

4-Pin


Cable length

 2

 2

 2

m±10mm

Mass

 350

 700

 1220

g±5%

PZT connector

 RJ11

 RJ11

 RJ11


Remark: UHV version available. Custom closed-loop version available.

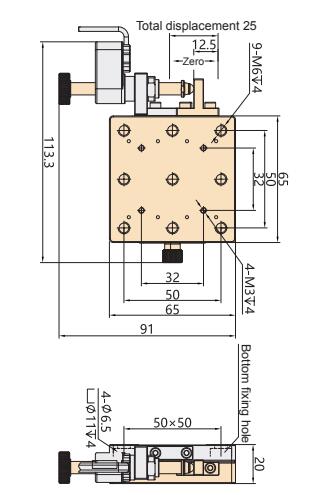

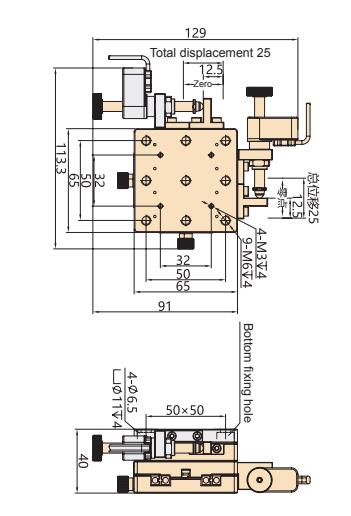

 N81K26X65 Drawing(Click on the picture to enlarge it)


    Downloads
Auto CAD PDF
Step
Specs Sheet

Manual

 N81K26XY65 Drawing(Click on the picture to enlarge it)


    Downloads
Auto CAD PDF
Step
Specs Sheet

Manual

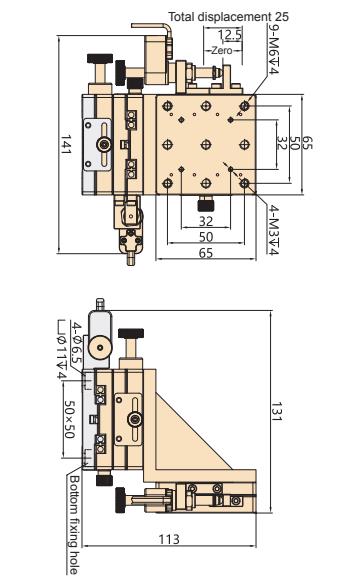

 N81K26XYZ65 Drawing

(Click on the picture to enlarge it)


    Downloads
Auto CAD PDF
Step
Specs Sheet

Manual

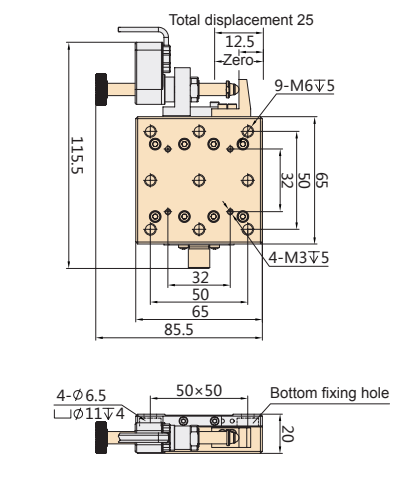

 N81K26X65 Standard edition Drawing

(Click on the picture to enlarge it)


    Downloads
Auto CAD PDF
Step
Specs Sheet

Manual

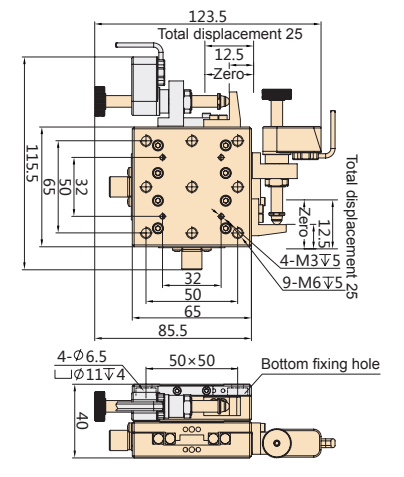

N81K26XY65 Standard edition Drawing

(Click on the picture to enlarge it)


    Downloads
Auto CAD PDF
Step
Specs Sheet

Manual

N81K26XYZ65 Standard edition Drawing

(Click on the picture to enlarge it)


    Downloads
Auto CAD PDF
Step
Specs Sheet

Manual

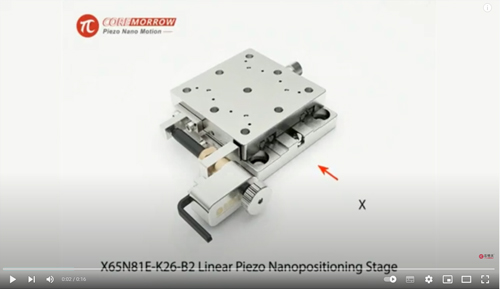

   N81K26X65 Motion Video

    3D diagram presentation
