N81K8T25 Optical Mount with Piezo Linear ActuatorCurrent Location：Product Homepage >> Piezo actuator/stage>>N81K8T25 Optical Mount with Piezo Linear Actuator

Introduction
Feedback

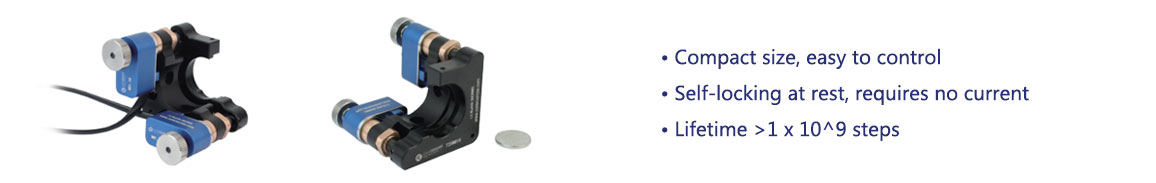

The Mirror Mount with Piezo Linear Motor can move in θx、θy two-dimensional deflection, and the adjusting range can reach ±5° . Each axis is controlled by a single piezo linear motor, and there is a common deflection axis between the two axes, and no coupling.

Characteristics

Compact size, easy to control

Self-locking at rest, requires no current

Lifetime > 1 x 10^9 steps

Technical Data

Model

Mounting diameter（mm)

Active axis

sensitivity（μrad）

Tilt range（°）

Mass

g±5%

PZT connector

N81K8T25

25.4

θx, θy

0.7

±5

220

RJ11

Recommended Controller

E53.C4K-H

Drawings（Click on the picture to enlarge it）

Downloads
Auto CAD PDF
Step		vacuum
Specs Sheet
Manual

Motion Video
