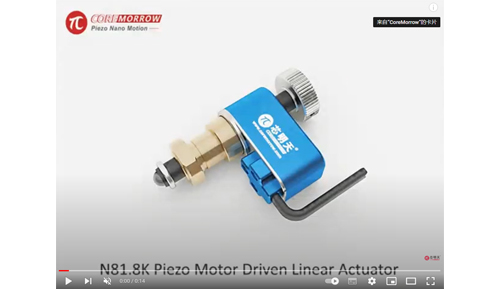

The linear piezo motor has the resolution of more than 20nm in full stroke,rated load of 25N, compact design, excellent long-term stability, and can continue to remain at the set position in the event of a power failure. It can be used for touch-free adjustment of hard-to-reach optical adjustment frames, and adjustment of optical frames that are sensitive to force when turning the knob (such as laser cavity adjustment or longdistance beam pointing adjustment).
Characteristics
|
|
|
|
|
| Technical Data | |||||
|
Model |
N81.8K |
N81.13K |
N81.26K |
N81A.8K |
Unit |
|
Travel |
8 |
13 |
26 |
8 |
mm |
|
Min.step |
＜20 |
＜20 |
＜20 |
＜30 |
nm±20% |
|
Axial load capacity |
25 |
25 |
25 |
10 |
N |
|
Speed |
3 |
3 |
3 |
1 |
mm/min±10% |
|
Position hold deviation at power up or down |
<20 |
<20 |
<20 |
- |
nm |
|
Operating temperature |
10~40 |
10~40 |
10~40 |
10~40 |
°C |
|
Mass（Includes cable） |
80 |
80 |
84 |
22 (not include cable) |
g±5% |
|
Material |
steel、aluminum |
steel、aluminum |
steel、aluminum |
Copper alloy, Aluminum |
|
|
Cable length |
2 |
2 |
2 |
1.5 |
m±10mm |
|
Recommended controller |
E53.C4K-H |
E53.C4K-H |
E53.C4K-H |
E53.C4K-H |
|
|
PZT connector |
RJ11 |
RJ11 |
RJ11 |
RJ11 |
|
Note: Custom closed-loop version is available.
