N81K8T50-C Optical Mount with Piezo Linear ActuatorCurrent Location：Product Homepage >> Piezo actuator/stage>>N81K8T50-C Optical Mount with Piezo Linear Actuator
  • Introduction
  • Feedback

    The N81K8T50-C piezoelectric mirror mount is specially designed for automatic angular deflection of mirror in cage structure. It has two linear actuation points for two-dimensional θx θy deflection motion adjustment of the mirror.


Characteristics


 Two-dimensional deflection motion

 Sub-micro-radian angular resolution

 Power-off self-locking

 Suitable for cage structure

 More flexible with motorized operation





More flexible with motorized operation


 Two-dimensional deflection adjustment of mirror in cage structure, etc.

    Technical Data

Type

N81K8T50-C

Units

Mirror diameter

50.8

mm

Motorized axes

2

pcs

Tilt range

±2

°

Resolution
 0.5 μrad±20%

Actuator

Piezo screw actuator



Operating temperature

10~40

℃

Recommended controller

E53.C4K-H/E53.C1K-K

PZT connector

RJ11

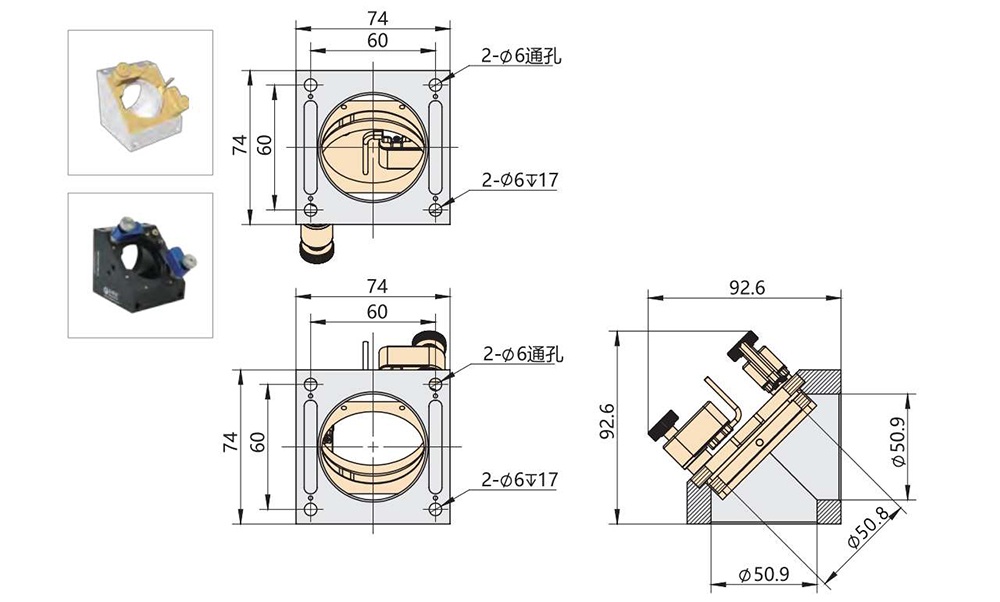

    Drawings（Click on the picture to enlarge it）
Click on the picture to enlarge it
    Downloads
Auto CAD PDF
Step
Specs Sheet
Manual
    3D diagram presentation
