CoreMorrow has a lot of experience in customizing piezoceramic controllers, and the professional R&D team can quickly provide the best solution for users. The controllers are specially designed for driving PDM and could be customized according to the customer's deformable mirror that requires the number of control channels, voltage, and control methods.
Types
|
|

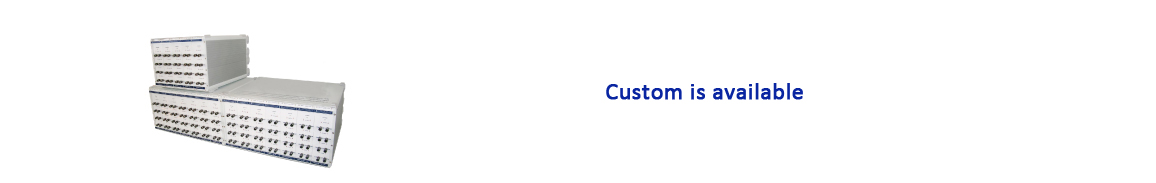

Hundreds of Channels Piezo Driver
|
| Technical data | ||||
|
Models |
E24 |
E40 |
E48 |
E112 |
|
Function |
Piezo Driver for PDMs |
|||
|
Channels |
Analog input |
|||
|
Control mode |
24 |
40 |
48 |
112 |
|
Input range(V) |
-10~+10 |
±5(differential) |
-5~+10 |
±5(differential ) |
|
Knob(turns) |
- |
10 |
- |
10 |
|
Input impedance(KΩ) |
100 |
|||
|
Bandwidth(Hz) |
1k |
|||
|
Output voltage(V) |
-300~+300 |
0~+300 |
-200~+400 |
0~+400 |
|
Ripple(mVpp) |
≤30 |
≤5 |
≤30 |
≤10 |
|
Peak current(mA/ channel) |
30 |
30 |
30 |
30 |
|
Ave. current(mA/channel) |
10 |
5 |
5 |
5 |
|
Interface |
BNC/LEMO |
DB socket |
51 contacts aviation plug |
DB socket |
|
Length×Width(mm) |
433×308 |
365×308 |
433×308 |
510×380 |
|
Height |
Standard 3U |
Standard 6U |
Standard 3U |
Standard 6U |
|
Operating temperature(°C) |
-10~50 |
|||
|
Power supply |
220VAC 50Hz±10% |
|||
|
Protection |
Overcurrent and short circuit protection |
|||
