E82.A64K-H E82.A8K-H Piezo Amplifier Piezo ControllerCurrent Location:Product Homepage >> Controllers for PDM>>E82.A64K-H E82.A8K-H Piezo Amplifier Piezo Controller
  • Introduction
  • Feedback

Characteristics


 64 channels

 Analog input control

 Output voltage -20~150V

 Can drive PZT in optical fiber sensor


Input Interface Definition

Output Interface Definition

Four E82.A64K Piezon Controllers

    Technical data

Type

E82.A8K-H

E82.A64K-H

Channels

8

64

Output voltage(V)

-20~150

-20~150

Output voltage resolution(mV)

<5/channel

<5/channel

Control mode

Analog input

Analog input

Analog input voltage(V)

-0.67~5

-0.67~5

0~5 Ave. output power(W)

3/channel

3/channel

Ave. current(mA)

30

30

Peak current(mA)

300

300

Bandwidth(kHz)

75(unloaded, 10V)

30(3nF load, 150V)

Ripple(mV)

<20

<20

Power supply

DC 28V 15A

DC 28V 15A

Power interface

WS20J2

WS20J2

Operating temperature(°C)

-20~+40

-20~+40

Analog input connector

J30J-9TJW

J30J-9TJW

Voltage output connector

J30J-21TJW

J30J-21TJW

Output protection

Current limit/over-current /over-temperature proof

Current limit/over-current /over-temperature proof

Size(mm)

330×89×103.2

Standard 19 inch 2U chassis, 449×330×89

Mass(kg)

2

13

    E82.A64K Drawings(Click on the picture to enlarge it)
点击图片可放大查看
    Downloads
Auto CAD PDF
Step
Specs Sheet
Manual

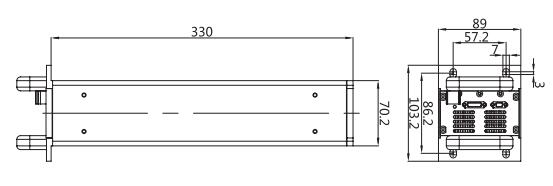

    E82.A8K Drawings(Click on the picture to enlarge it)
点击图片可放大查看
    Downloads
Auto CAD PDF
Step
Specs Sheet
Manual
