E81 Chassis-type Piezo Controller is high-power piezoceramic controllers that are ideally suited for driving and testing of large quantities of piezoceramics with adjustable frequency and output voltage.
|

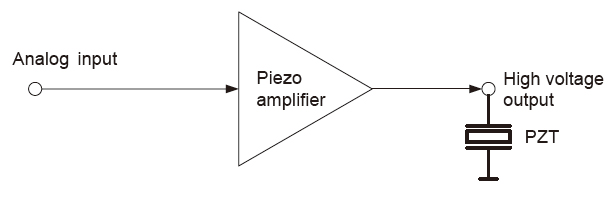

Driving Principle
|
|
Technical Data |
|
|
Type |
E81.A1K-H |
|
Input voltage range(V) |
-1.33~10 |
|
Output voltage range(V) |
-20~150 |
|
Peak current(A) |
>6 |
|
Ave. current(A) |
2（±10%） |
|
Gain |
15 |
|
Amplifier bandwidth(kHz) |
10 |
|
Ripple |
20 mVpp(2.2μF) |
|
Operating temperature(°C) |
0~50 |
|
Output current, short-circuit(mA) |
80 |
|
Analog input connector |
BNC-50KY female |
|
PZT connector |
ERA.0S.116.CTL |
|
Power supply |
220VAC |
|
Mass（g±5%） |
8190 |
|
Power interface |
IPZ-4 |
|
Static power(W) |
<35 |
|
Size(mm) |
L370×H134×D310 |
|
|
