H80K1T25/T35-C Integrated Mirror Mounts Piezo ActuatorCurrent Location:Product Homepage >> Piezo Components>>H80K1T25/T35-C Integrated Mirror Mounts Piezo Actuator
  • Introduction
  • Feedback

    The H80K1-C integrated mirror mounts piezo actuator has two models to choose from, namely H80K1T25-C (standard lens diameter of 25.4mm) and H80K1T35-C (standard lens diameter of 35mm). It is driven internally by piezo ceramic tubes and can be controlled through DC voltage signals, and has displacement of about 0.65μm@150V, which can be used for fast step phase shifting applications.

    It is designed for image shifting applications and can realize ultrafast(μs-level) step-by-step adjustment by voltage control. At the same time, the angle of θx, θy deflection can be adjusted manually with deflection range up to ±3°. Combining lens adjustment with image shift stepping makes it more convenient for applications such as image shift and interferometry.




Characteristics


 With 0~150V voltage drive, the travel range is about 0.65μm

 Manual deflection and piezo-drive linear motion

 Manual adjustment of θx θy two-axis deflection angle

 Single axis adjustment angle range is 0~±3°

 Standard loadable lens diameter is 25.4mm or 35mm, customized



Driving Voltage and Displacement Curve


Applications


 Fast nano-stepping

  phase shiftingt

 optical path adjustment

  interferometry

 fast step adjustment

    Technical Data

Types

H80K1T25-C

H80K1T35-C

Units

Active axes

Piezo drive

Z

Z



Manual

θx、θy

θx、θy



Travel (piezo)

0.65

0.65

μm±10%

Manual θx θy tilt angle

±3

±3

°/axis

Unloaded resonant frequency

47.8

47.8

kHz±20%

El.capacitance

40

40

nF±20%

Standard loadable lens diameter

Φ25.4 (Customizable)

Φ35 (Customizable)

mm

Max.driving voltage

0~150

0~150

V

Mass

265

270

g±5%

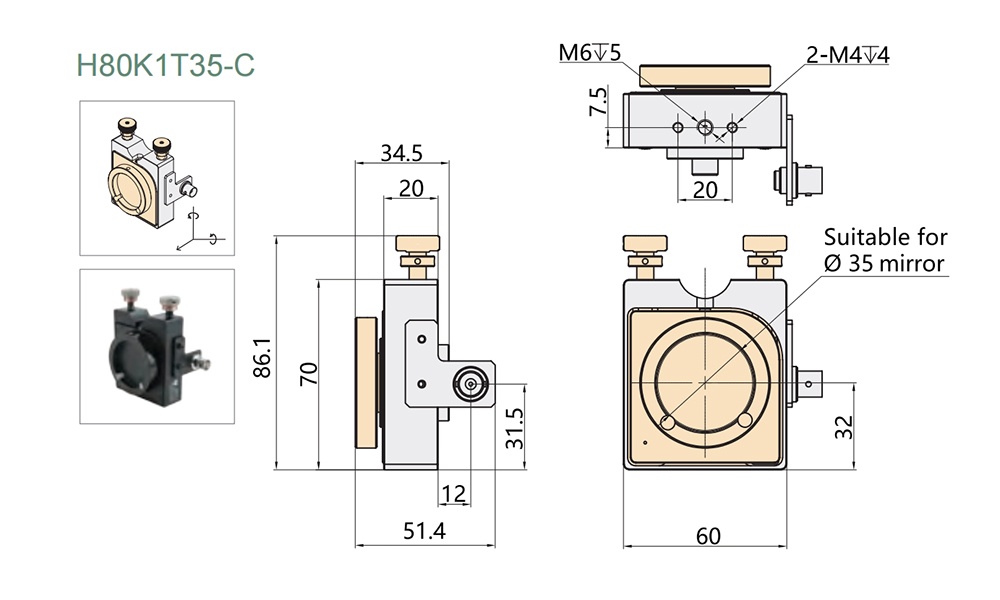

    H80K1T35-C Drawings(Click on the picture to enlarge it)
点击图片可放大查看
    Downloads
Auto CAD PDF
Step

Specs Sheet
Manual

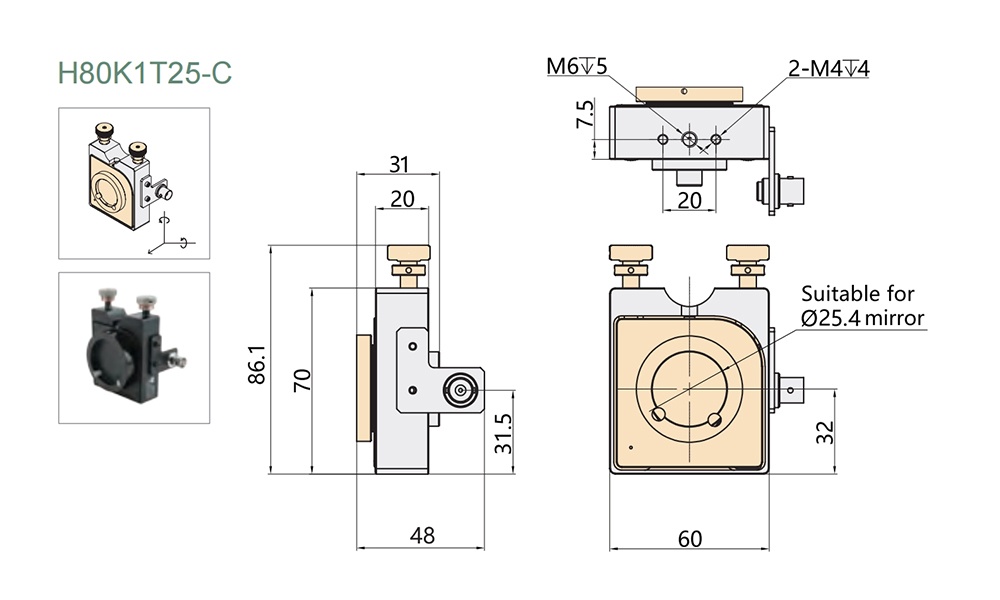

    H80K1T25-C Drawings(Click on the picture to enlarge it)
点击图片可放大查看
    Downloads
Auto CAD PDF
Step

Specs Sheet
Manual
